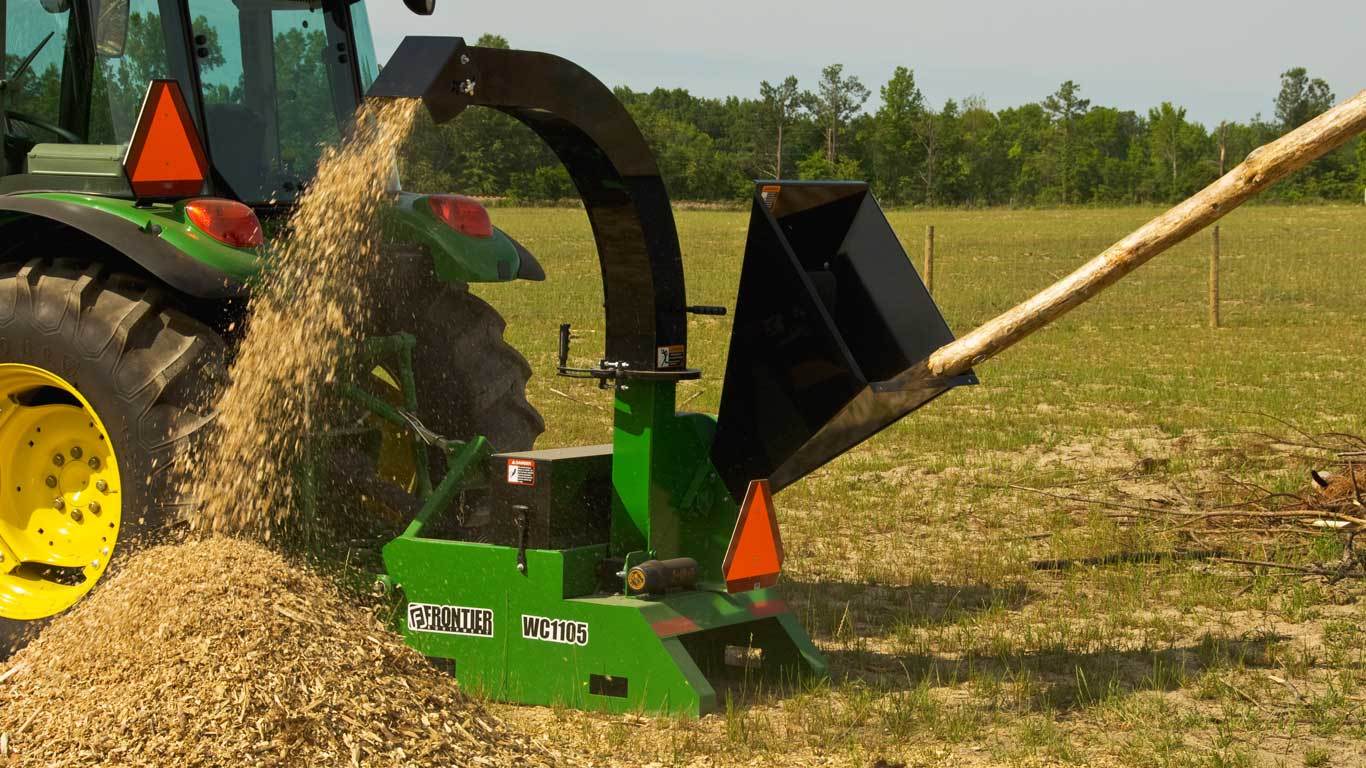

WC1105
Wood Chippers
- Efficient drive system
- Double-sided knives
- iMatchTMcompatible
View Product Brochure
Specifications
Compare the specifications of up to 4 models
| Dimensions | WC1105 Current Model |
|---|---|
| Chip opening | 76x140 mm 3x5.5 in. |
| Hopper opening | 635x457 mm 25x18 in. |
| Feed options | |
| System | Manual (gravity) |
| Feed_x001A_roller diameter | |
| Hopper height | 965 cm 38 in. |
| Chip chute | |
| Fixed | 2 positions |
| Adjustable | |
| Weights | |
| Unit | 170 kg 375 lb |
| Rotor style | Disc |
| Rotor | 29.5 kg 65 lb |
| Tractor compatibility | |
| PTO rpm | 540 rpm |
| HP range (Tractor PTO hp) | 13.4-29.8 kW 18-40 hp |
| 3-Point hitch | |
| Category | Cat. 1 |
| iMatch™ or Quik-Coupler | |
| Hydraulics | |
| Requirements | |
| Self-contained system | |
| Chipping | |
| Knife quantity | Two |
| Knife size | 635x89x7.9 mm 2.5x3.5x0.3125 in. |
| Knife bolt | |
| Shear bar | Adjustable hardened anvil |
| Rotor rpm | 1920 rpm |
| Belt drive system | |
| Number | One bx |
| Type | |
| Set-up time | |
| Labor hours | 0.5 |
| Warranty | |
| Time period | 1 year |
