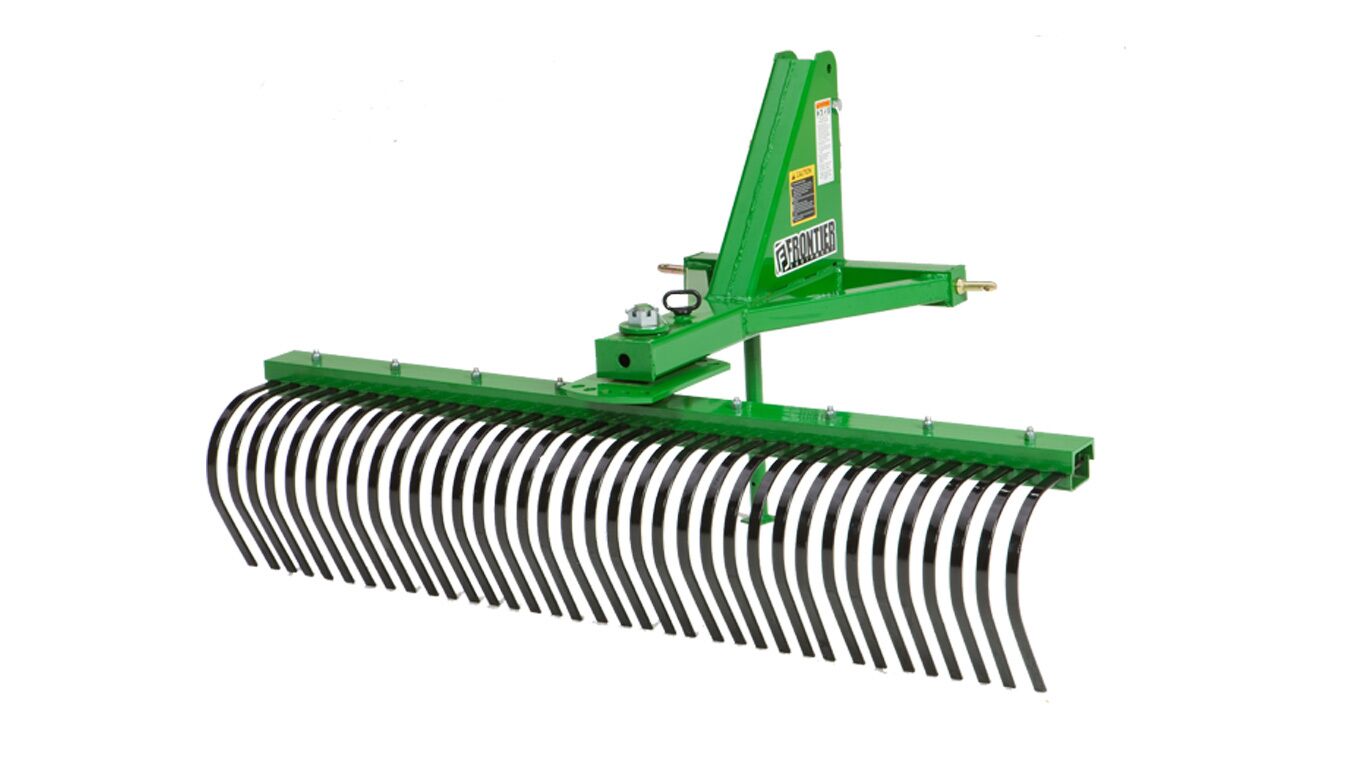

LR5084
Landscape Rakes
- Widths ranging from 60 to 90-in
- Rotate a full 360 degrees with 5 forward and 5 reverse settings
- iMatchTM compatible
View Product Brochure
Features
Multiple positions for desired raking profileStandard-duty landscaping rake models feature high-strength, formed tine beams constructed with a slotted, bolt-in mounting system. The spring steel tines are spaced at 2.5-cm (1-in.) intervals for exceptional performance in pick-up, grooming, and material distribution. This mounting ensures positive spacing and alignment over each tine.
Tubular steel frame and angled tine beamA strong, tubular-steel frame supports an angled tine beam for superior performance.
Hitch hookup is quick and easyThese standard-duty landscape rakes are compatible with tractors equipped with Category 1 3-point hitches and are also iMatch hitch. iMatch compatibility ensures a quick and efficient hookup.
Specifications
Compare the specifications of up to 4 models
| Dimensions | LR5084 Current Model |
|---|---|
| Working width | 243.8 cm 96 in. |
| Weight | |
| Operating | 147 kg 324 lb |
| Shipping | Two units: 325.7 kg 718 lb |
| Tractor compatibility | |
| PTO horsepower | 14.9-37.3 kW 20-50 hp |
| Hitch | |
| Compatibility | Cat. 1 |
| iMatch™ compatible (Cat.1) | Yes |
| Tines | |
| Quantity | 36 |
| Dimensions | 0.8x2.5 cm 0.3125x1 in. |
| Spacing | 2.54 cm 1 in. |
| Raking angle | |
| Positions | 5 forward, 5 reverse |
| Degrees | 0, 15, 30 degree (angle) |
| Pivot | |
| Degrees | 360 degree (angle) |
| Parking stands | |
| Standard | Yes |
| Duty | |
| Type | Standard |
| Shipping | |
| Configuration | |
| Set-up time | |
| Labor hours | |
| Warranty | |
| Time period | 1 year |
