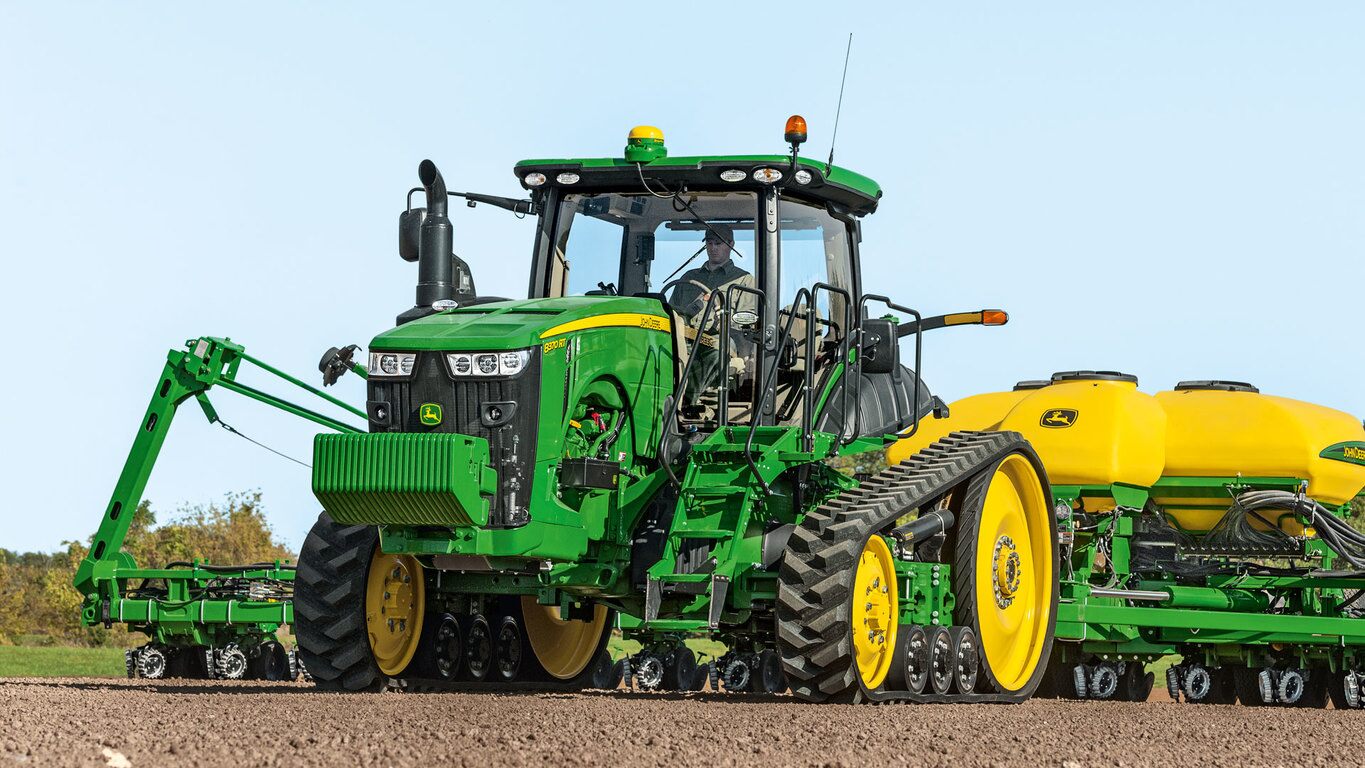

8320RT TRACTOR

This product is similar to the protective film used on hand-held touchscreen electronics and can reduce screen damage from regular use. It includes all necessary instructions and tools to install the transparent film over a touchscreen display.

8RT Series Track Tractor with wide track

Wide track conversion kit

A field-installed wide track conversion kit is available for 8RT Series Tractors to extend the track width beyond the base 72 in. to 120 in. The additional width permits track spacing from 112 in. to 160 in. in 4-in. increments.

This kit allows the tractor to operate in many specialty crops such as potatoes or sugar beets where additional width is needed. The additional row width is also a benefit in corn planted in 20-in. or 22-in. rows.

NOTE: The axle width changes to 173.3 in. (4400 mm) with the kit installed. Durabuilt™ 5500 Series tracks are highly recommended with 160-in. spacing kit.

Durabuilt is a trademark of Camso Incorporated.

9R Series with rotary beacon light

9R with left and right side beacon lights

The rotary beacon light is installed to meet requirements in commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored safety lens. Both the light and lens are replaceable if damaged.

The rotary beacon light features a fully adjustable, double-clamp design that provides a more rigid vertical support stem.

9R Series with rotary beacon light

9R with left and right side beacon lights

The rotary beacon light is installed to meet requirements in commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored safety lens. Both the light and lens are replaceable if damaged.

The rotary beacon light features a fully adjustable, double-clamp design that provides a more rigid vertical support stem.

The 7R Series and 8R Series Tractors offer dual-line hydraulic trailer brakes, dual-line air trailer brakes, or dual-line air and dual-line hydraulic trailer brakes, which allow the tractor braking system to connect to implements with high-pressure air or hydraulic brakes. Both systems automatically balance the brake pressure of both the tractor and implement to provide comfortable braking performance.

Trailer brake settings are fully customizable by adjusting gain and pre-brake settings. Trailer brake gain will give customers the ability to adjust how aggressive the trailer brakes are as the tractor brake pedal is depressed. Pre-brake adjustment will allow operators to adjust when the brakes are initiated in reference to the tractor brake pedal being depressed. This along with AutoClutch™ system settings will help the operator achieve optimum braking performance of both tractor and implement. Operators will also be able to test the trailer brake park release while the tractor is still in park during connecting and pre-trip activities.

Adjusting gain and pre-brake settings

Testing the trailer brake park release

Factory options include dual-line hydraulic trailer brakes, dual-line air trailer brakes, or dual-line air and dual-line hydraulic trailer brake systems. The dual-line hydraulic trailer brake option is also available as a field-installed kit.

Trailer brake connections – 8R shown

Air trailer brake tank and dryer – 8R shown

Air trailer brake tank – 8R shown

Hydraulic trailer brakes for 8RT Series Tractors are offered field installed only.

Dual-line hydraulic trailer brake system

Permits the use of hydraulic trailer brakes on the tractor. This system connects directly to the tractor’s hydraulic circuit and does not require the use of an auxiliary oil reservoir.

Hydraulic trailer brake system includes:

• Rear tractor line hydraulic couplers

Dual-line air and dual-line hydraulic trailer brake system

Permits the use of hydraulic or air brakes on the tractor. This system connects directly to the tractor’s hydraulic circuit and does not require the use of an auxiliary oil reservoir.

Air and hydraulic trailer brake system includes:

• Compressor
• Tank
• Air dryer
• Control valves
• Two line couplers
• Rear tractor line hydraulic couplers

CAUTION: The agricultural tractor air trailer brake system is designed for use only with agricultural implements and agricultural trailers. This system is not compatible with the air trailer brake system used by over-the-road vehicles and does not conform to the standards established for over-the-road air trailer brake contamination and electrical systems.

Dual-line air trailer brake system

Permits the use of air trailer brakes on the tractor.

Air trailer brake system includes:

• Compressor
• Tank
• Air dryer
• Control valves
• Two line couplers

CAUTION: The agricultural tractor air trailer brake system is designed for use only with agricultural implements and agricultural trailers. This system is not compatible with the air trailer brake system used by over-the-road vehicles and does not conform to the standards established for over-the-road air trailer brake contamination and electrical systems.

Right-hand window wiper

Optional right-hand window wiper with washer fluid is available on standard and premium cabs. This option allows the operator to clean the window in dusty conditions from the comfort of the cab. The windshield wiper fluid tank is located on the operator platform near the front of the cab.

Electrical power accessories

Power strip installed

Power strip

An electrical power strip can be installed on tractors not equipped, providing six additional outlets for powering monitors or other electrical equipment.

Three different adapters may be ordered separately through Parts.

Electrical cord

Three-way convenience adapter

• The 3-ft electrical cord is used for hardwiring electrical components to be used with the power strip.  The power strip end has a standard connector.
• The three-way convenience adapter allows three pin electrical connections to be adapted for use with the power strip.

Cigar lighter outlet adapter

• The cigar lighter outlet adapter can be used for plugging in items such as car charges for cell phones or MP3 players.  It does not include a lighter.

Cell phones, tablets, and other devices are key tools for farming today. John Deere has now made it easier than ever to incorporate these tools into the operator's station.

Stay connected with the RAM® cell phone and tablet mounts. John Deere offers a vast selection of adjustable accessory mounting solutions and media devices to fit every need and application.

Mounting bracket with cell phone and tablet mount

Mounting bracket with cell phone and tablet mount

RAM is a trademark of National Products Inc.

Cell phones, tablets, and other devices are key tools for farming today. John Deere has now made it easier than ever to incorporate these tools into the operator's station.

Stay connected with the RAM® cell phone and tablet mounts. John Deere offers a vast selection of adjustable accessory mounting solutions and media devices to fit every need and application.

Mounting bracket with cell phone and tablet mount

Mounting bracket with cell phone and tablet mount

RAM is a trademark of National Products Inc.

Block distractions out of the left side window of select tractor and sprayer cabs. The left-side sun shade bracket allows producers to mount their choice of two different sized sun shades to the cab door. The shade system design allows operators to block light and heat from the sun while not obstructing the cab entrance and exit access. The bracket kit is compatible with existing sun shades for a matched look in the cab with quality and features users are already comfortable with.

Bracket shown with large sun shade retracted on 8RT

Sun shade 30 percent open on 8RT

Sun shade 95 percent open on 8RT

• Block light from the sun and from high-intensity work lights at night
• Reduce summer heat from direct sun
• Sun shade options match the current interior (also orderable)

Bracket shown with large sun shade at 95 percent open on 8RT with door open

Electrical power accessories

Power strip installed

Power strip

An electrical power strip can be installed on tractors not equipped, providing six additional outlets for powering monitors or other electrical equipment.

Three different adapters may be ordered separately through Parts.

Electrical cord

Three-way convenience adapter

• The 3-ft electrical cord is used for hardwiring electrical components to be used with the power strip.  The power strip end has a standard connector.
• The three-way convenience adapter allows three pin electrical connections to be adapted for use with the power strip.

Cigar lighter outlet adapter

• The cigar lighter outlet adapter can be used for plugging in items such as car charges for cell phones or MP3 players.  It does not include a lighter.

A favorite worldwide, the RAM self-leveling cup holder is now available as a kit - designed specifically for Deere equipment. It is easily installed to keep your favorite beverage upright even in the roughest terrain. The perfect accessory for any cab that has 10-mm mounting bosses.

Self-leveling cup holder John Deere branded beverage insulator included

The new cup holder features a unique self-leveling design. This pivoting design allows easy adjustment for the holder while offsetting motion of the vehicle when moving.

Features and applications:

• Self-leveling action reduces spills
• Durable design for rough environments
• Easy adjustable mounting for ideal placement
• Includes John Deere branded beverage insulator
• Compatible with most monitor brackets and all 10-mm threaded bosses

This ashtray fits into the existing console cup  holder.

The producer can utilize various integrated technologies during sprayer operation and the following attachments allow them to properly fit, display, and charge these accessories:

• BRE10015 — Cell phone mount
• BRE10255 — Tablet mount
• RE343680 — Accessory mounting bracket

Ether valve and canister

The engine ether kit is recommended for tractors frequently started in cold weather.  This kit injects ether into the engine allowing quick combustion in below-average temperatures.

This optional cross-gate joystick replaces fingertip paddle pots for control of selective control valves (SCVs) and allows for programmable hydraulic functionality according to operator preference.

Fixed drawbar

Swinging drawbar

All 8R and 8RT Series Tractors offer a Category 4 drawbar with or without heavy-duty supports. The heavy-duty support option provides a maximum vertical load-carrying capacity of up to 4990 kg (11,000 lb). The Category 4 drawbars include a 50-mm (2-in.) pin.

All drawbar options provide an easy-to-use linkage that allows the drawbar pin to drop into the field position when hooking up to an implement. This linkage is activated when it is tapped by the implement drawbar.

9-pin implement electrical connector

The RE58827 9-pin electrical connector is required for TouchSet^TM  depth control to be used with implements with this feature. The harness provides a position input to the tractor selective control valve unit enabling the TouchSet system.

This feature allows the operator to adjust height and depth of remote lift cylinders by using the TouchSet controls in the cab.

Battery disconnect installed

Available as either a factory- or field-installed attachment, the battery disconnect switch is used to disconnect the batteries in preparation for 20-day to 90-day storage periods. The switch cuts the power to the entire tractor to aid in maintaining battery life.

An indicator light allows for safe and proper disconnect. The light will flash until it is safe to disconnect. This allows the diesel exhaust fluid (DEF) tank and lines to purge. (Final Tier 4 has an indicator light and Interim Tier 4 has no indicator light.)

Cummins is a trademark of Cummins Incorporated.

ISO 11783 location in R-Series Tractor cab

RE322780 ISO cab implement CAN bus adapter

The ISO cab implement controller area network (CAN) bus adapter is available to connect any ISO compliant implement or device to an 8R, 8RT, 9R, 9RT, 9RX (including Scraper Special) Series Tractor.  These connectors are commonly used for planter frame control boxes.

Refer to the operator's manual, sections 16 (CommandCenter™) and 25 (Operator Station), for additional information on ISO implements.

NOTE: If the harness is not in use, unplug it from the ISO 11783 location or plug the 4-pin connectors together on the harness.  If neither of these are done, implement CAN communication errors will occur.

Implement switch

The implement switch indicates to the CommandCenter™ when the implement is raised or lowered, to provide accurate data collection when using a performance monitor.

Dual-beam radar emission horns

Dual-beam radar (tracks tractor shown)

Shield for dual radar beam

In today’s agricultural environment, accuracy and precision are more important than ever. For something as basic as ground speed, operators need key information for precise control of various implements and the tractor. To support these needs, tractors can be ordered with a dual-beam radar unit as a factory- or field-installed option.

There are several key features that have changed from previous designs.

First, there are two horns for exit of the radio beam. This dual-beam design assures a powerful and accurate signal that will cut through interference that at times makes single-beam units inaccurate. (See 1 in the image above for beam locations.) Dual-beam output makes radar less susceptible to hard surface or tall/wavy grass interference.

Accuracy is aided by a heavy-gauge mounting bracket and rubber isolators that reduce chances that vibration can affect the radio signal.

Dual-beam radar has a fast update rate. When the tractor comes to a stop, accelerates, or varies speed, the indicated ground speed on the tractor display will closely match the actual ground speed. This is important for implements that use radar speed to control operation such as planters, seeders, fertilizer applicators, and sprayers.

In addition, the dual-beam radar does not require calibration to assure accuracy. Its self-calibrating ability is sure to save setup time by elimination of a special procedure that was required in the past.

The radar true ground speed sensor activates the following CommandCenter^TM display or performance monitor readouts:

• Percent slip
• Hitch slip command (if equipped)

Radar usage improves the accuracy of the following CommandCenter or performance monitor functions:

• Area covered
• Area/hour
• Distance and ground speed

Dual-beam units are compatible with controller area network (CAN) bus and International Organization for Standardization (ISO) bus electrical systems.

Dual-beam radar emission horns

Dual-beam radar (tracks tractor shown)

Shield for dual radar beam

In today’s agricultural environment, accuracy and precision are more important than ever. For something as basic as ground speed, operators need key information for precise control of various implements and the tractor. To support these needs, tractors can be ordered with a dual-beam radar unit as a factory- or field-installed option.

There are several key features that have changed from previous designs.

First, there are two horns for exit of the radio beam. This dual-beam design assures a powerful and accurate signal that will cut through interference that at times makes single-beam units inaccurate. (See 1 in the image above for beam locations.) Dual-beam output makes radar less susceptible to hard surface or tall/wavy grass interference.

Accuracy is aided by a heavy-gauge mounting bracket and rubber isolators that reduce chances that vibration can affect the radio signal.

Dual-beam radar has a fast update rate. When the tractor comes to a stop, accelerates, or varies speed, the indicated ground speed on the tractor display will closely match the actual ground speed. This is important for implements that use radar speed to control operation such as planters, seeders, fertilizer applicators, and sprayers.

In addition, the dual-beam radar does not require calibration to assure accuracy. Its self-calibrating ability is sure to save setup time by elimination of a special procedure that was required in the past.

The radar true ground speed sensor activates the following CommandCenter^TM display or performance monitor readouts:

• Percent slip
• Hitch slip command (if equipped)

Radar usage improves the accuracy of the following CommandCenter or performance monitor functions:

• Area covered
• Area/hour
• Distance and ground speed

Dual-beam units are compatible with controller area network (CAN) bus and International Organization for Standardization (ISO) bus electrical systems.

Backup alarm on an 8R Series Tractor

Transmission backup alarm kit for 8030 Series

To better accommodate governmental or commercial sales, a back-up alarm is available as a factory- or field-installed attachment on select models. An alarm sounds whenever the transmission is placed in reverse. The alarm provides a high level of warning that the tractor is changing direction.

A backup alarm is base equipment on Scraper Special Series Tractors.

IPM

NOTE: IPM is only available for Tier 3/Stage IIIA, Interim Tier 4/Stage IIIB, Final Tier 4/Stage V engines, and not for Stage II engines.

This feature is for many typical farming operations that use the rear power take-off (PTO) in high-power applications or the tractor as a transport vehicle. Operators who are looking for more power in non-stationary PTO and transport applications will be interested in the IPM feature.

In high rear PTO power applications such as forage harvesters, rototillers, and beet or potato harvesting equipment or where heavy trailers, carts, or implements are moved to and from various locations, this feature provides significant additional capabilities. The solution improves productivity with more consistent ground speeds, quicker acceleration, and the ability to better hold desired transport speeds.

This two-in-one tractor solution successfully operates in power-intensive PTO and transport applications at reasonable low fuel consumption without being disadvantaged by the higher weight, the bigger proportions, and the extra costs of the next higher horsepower model.

This feature is available as a factory- or field-installed option.

Tractor applications

8R Tractor in transport

Rear PTO field applications

• Rear-mounted snow blowers
• Sugar beet harvesting
• Forage harvesters
• Potato harvesting
• Rotary cutters
• Mower conditioners
• Flail mowers
• Balers
• Soil stabilizing
• Power harrow
• Vegetable bed formers
• Muck spreaders

Transport applications

• Grain carts or wagons
• Slurry tanks
• Implement transport from field to field
• Pull-type sprayers
• Extensive operation in hills/roadways

This is not intended to be an inclusive list of all applications but shows the wide range of uses for additional engine horsepower.

Power available

IPM provides engine power increase in levels proportional to the size of the tractor. IPM provides a controlled power boost of up to 26 kW (35 engine hp) to the tractor under the following operating conditions:

• Tractor moving and PTO under load
• Transport during acceleration
• Transport during deceleration

Power increase is not provided under draft applications or non-loaded rear PTO applications. Power increase is only provided when required.

How it works

There are specific operating parameters when IPM functions to boost engine power. It is the "intelligent" part of the system that provides seamless operation while adjusting the engine horsepower depending on how the tractor is being used. For engine horsepower boost activation, the tractor must already be running an application that is using the full power capability of the tractor.

PTO activation

Power must be sensed going through the PTO drive clutch by the tractor's electronic systems. The tractor must be moving at least 0.5 km/h (0.3 mph) and PTO consuming moderate power before power boost engages. The speeds shown above, assume lowest possible gear or speed setting and the engine running at 2100 rpm.

NOTE:  If the tractor is equipped with a front PTO, additional IPM power will transfer through the front PTO. However, IPM activation is only sensed through the rear PTO. Adequate load must be sensed on the rear PTO in order for IPM to activate.

Tractor compatibility with additional power

IPM has been thoroughly tested by John Deere engineers to be compatible with the base tractor equipment with no impact to reliability. John Deere provides IPM as opposed to unapproved aftermarket devices that boost power without regard to engine, transmission, axles, and drawbar, or hitch capability.

This feature provides optimal utilization of tractor components. For example, with PTO operation, power goes through axles to move the tractor along the ground and turn the PTO shaft and implement. Adding power to both of these systems does not overload either one individually. At transport speeds, drive train torque load decreases significantly from levels seen at low field speeds. Adding power at transport does not overload transmissions or axles.

Aftermarket devices are not selective when power increases are available. Great amounts of power increase are promised with these devices. Large power changes are not compatible with base tractor equipment. To note, base tractor equipment changes as power increases. Larger parts, like hitches, drawbars, tire size, drive train components, axle diameters, and engine calibrations for emission performance and cooling, ensure durability of the total vehicle as power increases. Operating outside of the design capabilities of the tractor base equipment will have an impact on durability and reliability.

Transport activation

When in transport applications, power transition is smooth. The engine will respond seamlessly as load changes, such as when going up and down hills. Additional power is available at a useful working speed with minor differences between tractor models and transmissions.

The minimum ground speed is where additional power will begin to be applied, assuming the engine is already fully loaded. Ramp up to full additional power occurs as speed continues to increase. Full additional power occurs within a 3 mph (5 km/h) band.

Transport during acceleration: power boost occurs in steps through the range from 23 km/h – 28 km/h (14.3 mph – 17.4 mph).

Transport during deceleration: power boost ramps down in equal steps in the range from 23 km/h – 18 km/h (14.3 mph – 11.2 mph).

Power boost levels other than at rated rpm

Some operators will run the tractor at full loads and/or run transmissions in auto mode in transport. This means that the engine most likely will not be operating at rated rpm. As the engine is loaded, it will eventually drop off of rated rpm and use the power bulge as rpm slows. This is the way every John Deere PowerTech™ Plus engine operates when it is loaded to maximum power and torque.

Usable rpm range of operation (8345R shown)

IPM (shown in purple in chart above versus standard power shown in blue) provides additional engine horsepower from rated engine speed down to approximately 1600 rpm (shown on the x-axis in image above, with power kilowatt shown in the y-axis), which is peak engine torque.

Horsepower levels are increased above base equipment power bulge values.

If the PTO is engaged and the engine rpm stays near rated speed of 2100 rpm, the full additional power potential for the tractor model will be available for use to handle additional load from the implement or changing terrain.

If the PTO is not in use and in transport operation and the rpm has dropped off of rated speed, usable additional power boost of IPM will taper off as rpm decreases. The chart above (with 8345R Tractor power curves) shows the relationship of how much additional usable horsepower is available in the operating range. All tractors operate in a similar manner with this feature.

Operator visibility and control of operation

Engine power display

All tractors have the power meter display function as base equipment. The operator can observe when full capabilities of the tractor are being utilized. This function graphically displays power utilization up to rated horsepower and power bulge.

The power meter can be found in the CommandCenter™ display. If the engine is off or has minimal load, the power meter will not fill in. The meter is similar in concept to a cellular phone's signal-strength meter. As the power increases, it will fill in bars in an icon. The display will also show the level of additional power being used. The long section represents up to the rated power. The smaller section represents power bulge and is an indicator of additional power available with IPM.

Via the CommandCenter, there is also the ability to enable or disable the function. The operator's manual provides simple details about navigating the engine screen.

IPM is automatically enabled each time the tractor is started.

Noncurrent attachment

Note: This is a noncurrent kit. The information provided is valid for each tractor as of the last date that tractor was in production.

Quik-Tatch weights are used to better ballast tractors for both field and loader applications.

Applies to tractor models:

• Maximum of 4 weights on 2040, 6 weights on 2240, and 8 weights on 2440 and 2640 Tractors.
• Maximum of 10 weights per tractor on 2840, 2940, 3150, 4030, 4040, 4230, 4240, 4430, and 4630 Tractors.
• Maximum of 6 weights on 2355N; 8 weights on 2555 Low-Profile, 2755 Low-Profile, and 2855N.
• Maximum of 4 weights on 2155, 6 weights on 2355, and 8 weights on 2555 and 2755 Tractors.
• Maximum of 10 weights on 2955 and 12 weights on 2955 Tractors equipped with high lift capacity.
• Maximum of 14 weights on 4440 Tractors.
• Maximum of 20 weights on 4640 and 4840 Tractors.
• Maximum of 14 weights on 4055 and 20 weights on 4255 and 4455 Tractors.
• Maximum of 20 weights on 4555, 4560, 4755, 4760, 4955 and 4960 Tractors.
• Weights only for 7200, 7400,7600, 7700 and 7800 Tractors.
• Weight support only for 7600 (SN -7754), 7700 (SN -9088), 7800 (SN -14027) Tractors.  For all 7200 and 7400 Tractors and 7600 MFWD (SN7755- ), 7700 MFWD (SN9089- ), and 7800 MFWD (SN14028- ): R129660 shown.

R129660 - Quick-Tatch Weight

The auxiliary reservoir kit for the model year 2014 and newer 8R Series Wheel Tractors holds 50 L (13.2 gal.) of oil, providing a total hydraulic oil capacity of 90 L (23.8 gal.). This additional volume helps ensure that the tractor has enough hydraulic oil for applications using large single-acting cylinders or needing large hydraulic oil flow in a short period of time.

The reservoir is available as a factory- and field-installed kit to meet the needs of specific applications and is not needed for ordinary hydraulic operations.

Five remote SCVs

The field-installed electronic SCV kits are made available for tractors needing additional SCVs. These kits provide metered flow rates and timed detents with pressure and load sense compensation. The additional SCV(s) can also be integrated into the Headland Management System.

The field-installed kit includes International Organization for Standardization (ISO) lever-assisted breakaway couplers and armrest control lever.

Five remote SCVs

The field-installed electronic SCV kits are made available for tractors needing additional SCVs. These kits provide metered flow rates and timed detents with pressure and load sense compensation. The additional SCV(s) can also be integrated into the Headland Management System.

The field-installed kit includes International Organization for Standardization (ISO) lever-assisted breakaway couplers and armrest control lever.

Easy hookup of planters and other implements

Auxiliary hydraulic couplers (8R shown)

Auxiliary hydraulic couplers (8R shown)

1. Pressure port
2. Return ports
3. Case drain port
4. Load sense coupler
5. Hitch valve
6. Auxiliary hitch valve port (if equipped)

To assist hooking up large equipment where multiple connections are required, factory-installed auxiliary hydraulic couplers are available.

Auxiliary sump coupler

The sump coupler kit allows oil to return from the hydraulics motor at low pressures. This coupler is required for correct attachment to current-production seeding products with case drain lines. The connector in the sump port is not to be used to carry return flow from a function to the tractor.

This coupler is required for correct attachment to current-production seeding products with case drain lines.

Hydraulic motor return couplers

The hydraulic motor return couplers can be used as couplers for return oil flow, from hydraulic orbital motors and other devices to the tractor's low-pressure return port, labeled R on the tractor.

Use of this connector specifically in the return to sump port position is for hydraulic components that require a leak-off line connection to the tractor. Components and implements that require this typically are larger orbital motors that require a drain for seal protection. The connector in the sump port is not to be used to carry return flow from a function to the tractor.

Power beyond couplers

Power beyond provides live hydraulic power to equipment. This kit supplies oil pressure to implements when the engine is running.

Any implement using power beyond must have a way to control oil flow. Use an independent control valve that is pressure-and-flow compensating (supplied separately) to control the oil flow rate from this coupler set. Power-beyond functions require a load-sense signal to regulate pump pressure, therefore, a load-sense hydraulic line is used. Certain equipment may require modification.

Optional auxiliary hydraulic equipment (9R shown)

The auxiliary hydraulic optional equipment includes the following:

A – Pressure coupler
B – Load sense coupler
C – Return coupler (motor return)

Easy hookup of planters and other implements

Auxiliary hydraulic couplers (8R shown)

Auxiliary hydraulic couplers (8R shown)

1. Pressure port
2. Return ports
3. Case drain port
4. Load sense coupler
5. Hitch valve
6. Auxiliary hitch valve port (if equipped)

To assist hooking up large equipment where multiple connections are required, factory-installed auxiliary hydraulic couplers are available.

Auxiliary sump coupler

The sump coupler kit allows oil to return from the hydraulics motor at low pressures. This coupler is required for correct attachment to current-production seeding products with case drain lines. The connector in the sump port is not to be used to carry return flow from a function to the tractor.

This coupler is required for correct attachment to current-production seeding products with case drain lines.

Hydraulic motor return couplers

The hydraulic motor return couplers can be used as couplers for return oil flow, from hydraulic orbital motors and other devices to the tractor's low-pressure return port, labeled R on the tractor.

Use of this connector specifically in the return to sump port position is for hydraulic components that require a leak-off line connection to the tractor. Components and implements that require this typically are larger orbital motors that require a drain for seal protection. The connector in the sump port is not to be used to carry return flow from a function to the tractor.

Power beyond couplers

Power beyond provides live hydraulic power to equipment. This kit supplies oil pressure to implements when the engine is running.

Any implement using power beyond must have a way to control oil flow. Use an independent control valve that is pressure-and-flow compensating (supplied separately) to control the oil flow rate from this coupler set. Power-beyond functions require a load-sense signal to regulate pump pressure, therefore, a load-sense hydraulic line is used. Certain equipment may require modification.

Optional auxiliary hydraulic equipment (9R shown)

The auxiliary hydraulic optional equipment includes the following:

A – Pressure coupler
B – Load sense coupler
C – Return coupler (motor return)

Auxiliary hitch lift assist kit

Auxiliary hitch lift assist

Lift assist wheels are often used with heavy 3-point-hitch-mounted implements. The hitch auxiliary raise kit provides hydraulic power for use with the lift assist wheels. Turning and transport are made easier using this feature.

Flush face case drain coupler

For installing tractor case drain for vacuum motors. A motor seal drain kit (return to sump) protects the motor and shaft seal by allowing motor housing pressure to return back to hydraulic reservoir free of any back pressure. Handles up to 3 U.S. gallons per minute.

NOTE: All vacuum planters built after 1 May 2004 have hydraulic case drain vacuum motors. These motors have a flush-face case drain hose tip on the return oil line that must be routed to the tractor's sump/case drain port. The tractor requires a case drain coupler be installed in this port to accept the return hose.

This kit is required for operation of 1910 Commodity Air Cart and 1990 CCS^TM hydraulically-driven fan.

This kit is for converting the hydraulic motor return port to a quick-connect port for fast connections. It includes a plastic snap cover to keep the port clean while not in use.

Xenon HID lights improve nighttime visibility

HID lights

John Deere has taken advantage of advanced lighting technology. This lighting provides the operator with industry-leading performance in nighttime visibility.

The important part of the system is the use of Xenon high-intensity discharge (HID) bulbs. These bulbs provide extreme brightness and a daylight color output for excellent definition of the field. The performance of this system allows the operator to easily view as much as 250 percent farther ahead, compared to previous tractors. A further benefit is there are no filaments in the HID bulb. Bulb life is increased by as much as 10 times vs. filament-style bulbs.

Standard lighting

FieldVision lighting

Front FieldVision lighting

Front HID locations

Roof lighting location

The front lighting package adds three high-intensity discharge (HID) lights to the front grille (see 1 in the image above). To further enhance all-around tractor lighting, there are two additional 65-W halogen work lights added to the left- and right-hand cab roof.

The center of the bulb has a semi-spot lens, and the outer light housings have a flood lens. In row-crop, the operator will notice there is a longer beam of light in the center for following marker furrows. The overall width of the lighting pattern for a non-row-crop operation will be obvious so tilled or seeded passes are easily identified. The inner, larger-diameter light assemblies are used for road transport and use conventional halogen 60-/55-W H4 bulbs. These larger light housings are also used in the base lighting system. With the dual-wattage H4 bulb, the operator will notice that there is a true automotive-style high/low function when operating in the road position.

The cab roof lights can be adjusted to aim to the side or rear of the tractor.

Rear FieldVision lighting

Rear FieldVision HID lighting

The premium HID lighting package (code 1720) adds two adjustable-position HID lights on the rear fenders.

Unlike aftermarket lights where the operating ballast is integral, these lights use a smaller housing with remote-mounted ballast.  The smaller housing decreases obstruction for a clear view looking out the rear window.  Using the light’s wide-angle flood lens will make it much easier to monitor the widest or longest equipment available.

Front roof-mounted floodlights

Side roof-mounted floodlights

Nighttime visibility can be improved on tractors with two roof-mounted front floodlights or two roof-mounted side floodlights.

For additional transport visibility, install a rotary beacon light.

Rotary beacon light installed on 7030

Rotary beacon light installed on 7020

Option code 9779 on the 7030 Series Large-Frame Tractors includes the rotary beacon light. The light features a fully-adjustable, double-clamp design that provides a more rigid vertical support stem.

Rotary beacon lights can be installed for additional transport visibility and commercial or governmental applications. The rotating, high-intensity light rests securely within an amber-colored lens.

Rear fender LED light kit

Eliminate the need for replacing bulbs with this pedestal-mounted LED light. The light is more like natural sunlight compared to traditional incandescent technology. The included connector harness makes this lighting upgrade a true plug-and-play solution for a quick and simple installation. The kit includes all necessary materials (including hardware) for one single light upgrade/replacement. For upgrading/replacing both rear fender lights, order two kits.

With loads of capacity, two removable shelves, and an innovative front door and lid design, this new tractor utility box breaks new ground for convenience, versatility, and rugged design. Grease guns, tow chains, hitch pins, and many other essential items can be stored safely and can be easily accessed, putting an end to cluttered cabs.

Front utility box

Front utility box and bracket

Built from welded, heavy-gauge sheet steel, this new box offers long-term durability not seen with other toolboxes. A heavy-duty gas strut on the lid and locking pins make opening and locking simple and easy.

Specifications:

• Made in the USA
• 23 in. x 8 in. x 12 in.
• Two removable shelves
• Heavy-duty construction
• Fold down front door for easy access
• Mount with existing R127764 tractor weights using BRE10153 bracket
• Mount on 9X30 Series Wheel Tractors (front left side) using BRE10291 bracket

With loads of capacity, two removable shelves, and an innovative front door and lid design, this new tractor utility box breaks new ground for convenience, versatility, and rugged design. Grease guns, tow chains, hitch pins, and many other essential items can be stored safely and can be easily accessed, putting an end to cluttered cabs.

Front utility box

Front utility box and bracket

Built from welded, heavy-gauge sheet steel, this new box offers long-term durability not seen with other toolboxes. A heavy-duty gas strut on the lid and locking pins make opening and locking simple and easy.

Specifications:

• Made in the USA
• 23 in. x 8 in. x 12 in.
• Two removable shelves
• Heavy-duty construction
• Fold down front door for easy access
• Mount with existing R127764 tractor weights using BRE10153 bracket
• Mount on 9X30 Series Wheel Tractors (front left side) using BRE10291 bracket

Custom key door locks

Custom key door lock kit

Field-installed kit (AL71345) allows for a door handle to be installed that has a key different from the tractor ignition key.

Track tensioning kit in use

Track tensioning kit

Track tensioning hose kit must be used to relax/tension the track when changing tracks.

Kit includes hose and shutoff valve.

Power strip and accessories

Power strip kit

Power strip installed

The power strip provides six additional electrical outlets that give either permanent or ignition-key-controlled power for such items as:

• Computers
• Portable telephone chargers
• Implement monitor
• Implement supply
• 12-V and up to 30-amp total current can be taken from these outlets

The power strip is not a surge suppressor. Electrical equipment with program memory or capacity for data storage requires protection from the damage of electrical surges and spikes that could occur in systems without transient voltage protection.

Accessories mounting bracket

Tray kit

The accessories bracket is available for mounting monitors, phones, radios, and other accessories in one convenient location.

The bracket connects in the existing holes inside the cab.

CommandView™ III cab refrigerator

The optional refrigerator, available for standard or premium cab models, offers improved operator comfort and accommodation. Located to the left of the operator’s seat, the refrigerator provides ample cooling capacity to keep food and beverages fresh. The large-capacity slide-out tray eases loading, unloading, and cleaning. The refrigerator is activated by turning the key to the on position or starting the tractor, and shuts off when the key is turned off.

This kit provides antenna mount, radio mounting plate, and wiring for a business band radio.

Carpet mat with foot throttle shown

Reduce cab noise and increase comfort with fabric flooring in the cab. This snag-resistant mat is color matched to the existing tractor cab interior and is easily removed and installed for quick cleaning. The die-cut carpet lays directly over the rubber floor in the cab and is a precise fit. A carpet mat is also available for tractors equipped with a foot throttle.

Carpet mat with foot throttle shown

Reduce cab noise and increase comfort with fabric flooring in the cab. This snag-resistant mat is color matched to the existing tractor cab interior and is easily removed and installed for quick cleaning. The die-cut carpet lays directly over the rubber floor in the cab and is a precise fit. A carpet mat is also available for tractors equipped with a foot throttle.

Electrical power accessories

Power strip installed

Power strip

An electrical power strip can be installed on tractors not equipped, providing six additional outlets for powering monitors or other electrical equipment.

Three different adapters may be ordered separately through Parts.

Electrical cord

Three-way convenience adapter

• The 3-ft electrical cord is used for hardwiring electrical components to be used with the power strip.  The power strip end has a standard connector.
• The three-way convenience adapter allows three pin electrical connections to be adapted for use with the power strip.

Cigar lighter outlet adapter

• The cigar lighter outlet adapter can be used for plugging in items such as car charges for cell phones or MP3 players.  It does not include a lighter.

CommandARM bracket

CommandARM bracket

The CommandARM bracket for Final Tier 4 (FT4) tractors offers a convenient way to mount a cell phone or tablet to the CommandARM for easy use of a mobile device. This bracket is not compatible with joystick-equipped tractors.

NOTE: Cell phone, tablet, and Ram mount hardware sold separately.

NOTE: This bracket is not compatible with joystick-equipped tractors.

This cable connects the cornerpost Ehternet connector (square) to the GreenStar™ 3 2630 Display Ethernet connector (round). It is required for used with Remote Display Access (RDA), Wireless Data Transfer (WDT), and Machine Sync.

The square-to-round connector cable is 80-cm (31.5-in.) long.

Foot-operated speed control (8R Series)

The foot-operated speed control increases productivity of the tractor/operator unit by allowing the operator better control of engine speed for loader work, maneuvering in tight spaces, and transport. This option provides the operator excellent modulation of engine speed on wheel tractors.

Infinitely Variable Transmission (IVT™) equipped tractors can have an automotive-type operation with the use of foot throttle. This is especially useful in transport applications. Foot throttle and AutoClutch™ clutch action of the transmission are easily coordinated by the operator for smooth operation.

Electrical power accessories

Power strip installed

Power strip

An electrical power strip can be installed on tractors not equipped, providing six additional outlets for powering monitors or other electrical equipment.

Three different adapters may be ordered separately through Parts.

Electrical cord

Three-way convenience adapter

• The 3-ft electrical cord is used for hardwiring electrical components to be used with the power strip.  The power strip end has a standard connector.
• The three-way convenience adapter allows three pin electrical connections to be adapted for use with the power strip.

Cigar lighter outlet adapter

• The cigar lighter outlet adapter can be used for plugging in items such as car charges for cell phones or MP3 players.  It does not include a lighter.

Front pull-down sun shade

The pull-down shade for the front windshield improves operator visibility on sunny days by blocking the sun's bright light and reducing glare. The pull-down sunshade allows the operator flexibility in the amount of window coverage desired through an infinitely adjustable range of movement and more positive friction detents found in a scissors-style linkage.

The sun shade is included in all CommandView™ III cabs.

To celebrate 100 years of John Deere tractors, all Waterloo-built tractors will feature the 100 Years of Tractors rear window sunscreen featuring “100 Years of Tractors, John Deere, Waterloo Since 1918” text.

This unique sunscreen will be standard equipment on all Waterloo-built tractors for model year 2018.

100 Years of Tractors rear window sunscreen

Front pull-down sun shade

The pull-down shade for the front windshield improves operator visibility on sunny days by blocking the sun's bright light and reducing glare. The pull-down sunshade allows the operator flexibility in the amount of window coverage desired through an infinitely adjustable range of movement and more positive friction detents found in a scissors-style linkage.

The sun shade is included in all CommandView™ III cabs.

To celebrate 100 years of John Deere tractors, all Waterloo-built tractors will feature the 100 Years of Tractors rear window sunscreen featuring “100 Years of Tractors, John Deere, Waterloo Since 1918” text.

This unique sunscreen will be standard equipment on all Waterloo-built tractors for model year 2018.

100 Years of Tractors rear window sunscreen

Radio

John Deere radio packages provide powerful performance with standard four-speaker systems. The standard radio package features easy-to-use operator controls located on the CommandCenter™ display and at the radio faceplate. AM/FM and weatherband tuner allows operators to stay tuned to their favorite radio stations and keep current with ever-changing weather patterns. An auxiliary input for connecting an external media source is conveniently located on the right-side console.

The premium radio package adds to these great features with Bluetooth® to connect with compatible media devices and a USB input for connecting external media sources. A subwoofer is also available in this package to increase the operator experience within the cab.

Both radio packages help create a comfortable operator environment for long hours in the cab.

Standard radio package

• AM/FM and weatherband tuner (NOAA broadcast channels)
• External antenna
• Remote controls through the CommandARM™ controls (volume, mute, channel up/down)
• CommandCenter display with station selection, volume level, and station presets
• Auxiliary input (3.5 mm [0.14 in.]) on right-side console
• Four coaxial speakers

Premium radio package*

• AM/FM, weatherband (NOAA broadcast channels), and worldwide premium tuner
• External antenna
• Remote controls through CommandARM (volume, mute, channel up/down)
• CommandCenter display with station selection, volume level, and station presets
• Universal serial bus (USB) input
• Auxiliary input on right-side console
• Bluetooth capable with microphone (allows phone and streaming audio)
• Four coaxial speakers
• Subwoofer

*XM Satellite functionality for premium radio needs to be upgraded by purchasing the XM antenna, XM receiver, brackets, and wiring harnesses via a kit from your local John Deere dealer.

Radio controls

Bosch is a trademark of Robert Bosch GmBH. Bluetooth is a trademark of Bluetooth SIG Incorporated. XM is a trademark of XM Satellite Radio Incorporated. Delco is a trademark of General Motors LLC.

This kit provides additional (premium upgrade) controls for operating the rear hitch from the operator's seat.

Category 3/3N Quik-Coupler

Category 4N/3 Quik-Coupler

The Category 4N/3 and Category 3/3N cast Quik-Couplers provide increased clearance between an implement and the tractor’s tires, and allow fast and convenient attachment to implements.

Seat belt for 8R Series Tractors

The 3-in. field-installed seat belt kit is designed for use with the 8R and 8RT Series Tractor operator seats. The seat belt kit is offered to meet regulations that require a seat belt anchorage force similar to the SAE J386 (including previous versions up to 22.2 kN anchorage strength), IOS 6683, and OSHA requirements (29CFR1926.602) for earthmoving operations and non-agricultural tractor operations.

NOTE: John Deere recommends reviewing the seat belt kit performance capabilities to ensure compliance with local, state, regional, and national requirements.

Ether valve and canister

Block heater

The optional cold start package is recommended for tractors frequently started at or below -6°C (21.2°F).

The kit includes factory-installed activation switch and ether valve with ether canister. A 110-V, high-wattage block heater and grounded cord are also included with the factory-installed option.

Ether valve and canister

Block heater

The optional cold start package is recommended for tractors frequently started at or below -6°C (21.2°F).

The kit includes factory-installed activation switch and ether valve with ether canister. A 110-V, high-wattage block heater and grounded cord are also included with the factory-installed option.

8RT Series Tractor shown with idler weight

Front idler weights can be used by operators to add additional idler weights to the front of a track tractor to offset the weight of a hitch-mounted or drawn implement that exerts heavy loads on the rear of the tractor.

One pair of starter weights is required per idler to add additional wheel weights on the inside and outside of the front idler wheel.
