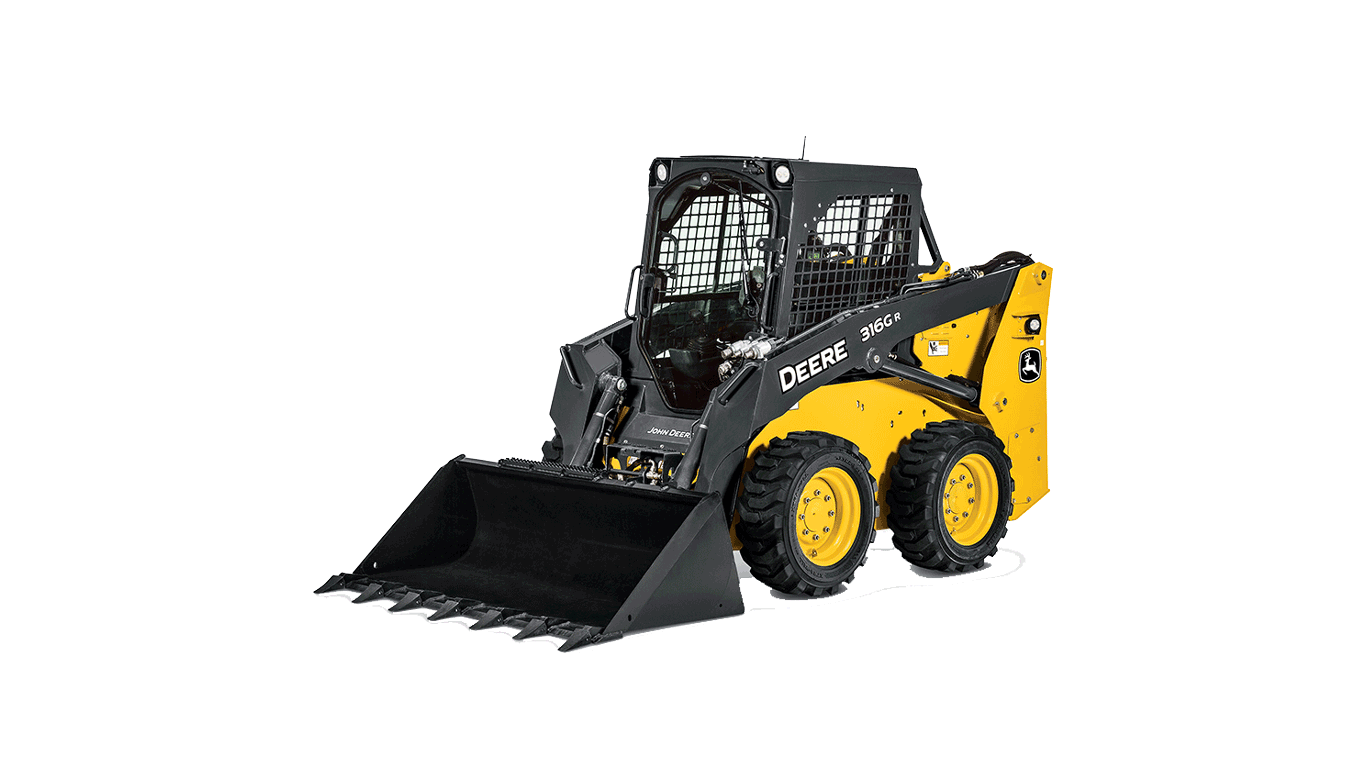

316GR SKID STEER
Skid Steer
- Rated Operating Capacity: 795 kg (1,750 lb.)
- Gross Horsepower: 48.5kW (65 hp)
- Net Horsepower: 45.6 kW (61 hp)
- Operating Weight: 2,894 kg (6,375 lb.)
View Product Brochure
Features
The radial-lift boom offers more reach at mid-range lift heights, good for digging, grading, and backfilling. It provides powerful digging performance at a competitive price.
The low center of gravity and superior balance provide exceptional agility and stability on slopes.
Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
Large coolers provide increased heat rejection for superior performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.
With weights from only 5,995 to 6,315 lb., these compacts are easy to trailer behind a pickup truck.
Without a bucket, the 316GR slims down to 1600 mm (62.9 in.) to fit through narrow openings.
Larger entryways with swing-out doors make it easier to get in, get comfortable, and get on with it. Inside, there’s more productivity-enhancing foot- and legroom.
Low-effort foot pedals are standard on skid steers; manual hand controls are available.
Generous tank capacity and fuel-efficient diesels enable day-long operation, letting you accomplish more between fill-ups.
Rear door enables easy, ground-level access to daily service checkpoints and cooling system components.
Specifications
Compare the specifications of up to 4 models
| DESCRIPTION | 316gr-skid-steer Current Model |
|---|---|
| Lift Geometry | Radial |
| DRIVELINE | |
| Engine Manufacturer | Yanmar |
| Engine Model | 4TNV86CHT |
| Emission Rating | Tier 4 |
| Aspiration | Turbo |
| Displacement, ltr (Inches�) | 2.1 (128) |
| Rated Engine Speed, rpm | 2600 |
| SAE Net Power, kW (hp) | 45.6 (61) |
| SAE Gross Power, kW (hp) | 48.5 (65) |
| Max. Gross Torque, Nm (lbf / ft) | 207 (153) |
| Drive Chain Rating [ANSI] | 80 - HD |
| Tire size - Standard | 10 x 16.5 |
| DIMENSIONS | |
| Length - No Bucket, mm (inches) | 2630 (103) |
| Length - With Bucket, mm (inches) | 3240 (127.6) |
| Width - No Bucket, mm (inches) | 1600 (62.9) |
| Overall Height, mm (inches) | 1960 (77.2) |
| Ground Clearance, mm (inches) | 180 (7) |
| Wheelbase, mm (inches) | 1050 (41.5) |
| Rear Departure Angle, � | 22.3 |
| Height to Hinge Pin, mm (inches) | 2920 (115.1) |
| Dump Angle, � | 45 |
| Dump Height - Maximum, mm (inches) | 2250 (88.6) |
| Reach - Max Dump Height, mm (inches) | 400 (15.8) |
| Rollback - Ground Level, � | 30 |
| CAPACITIES | |
| Fuel Tank, ltr (gallons (US)) | 71 (19) |
| PERFORMANCE | |
| Rated Operating Capacity - Optional Counterweight, kg (lbs) | 863 (1900) |
| Rated Operating Capacity, kg (lbs) | 795 (1750) |
| Tipping Capacity (SAE), kg (lbs) | 1589 (3500) |
| Axle Torque - Maximum, Nm (lbf / ft) | 6459 (4764) |
| Speed - Maximum, kph (mph) | 11 (6.9) |
| Speed - Maximum Option, kph (mph) | 16.3 (10.1) |
| Breakout - Lift, kN (lbf) | 21.1 (4750) |
| Breakout - Bucket, kN (lbf) | 17.7 (4000) |
| Hydraulic Power, kW (hp) | 23.159 (31) |
| Pump Output, lt/min (gallons (US) / min) | 59 (16) |
| System Pressure, bar (PSI) | 237.87 (3450) |
| WEIGHTS | |
| Operating Weight, kg (lbs) | 2894 (6375) |
