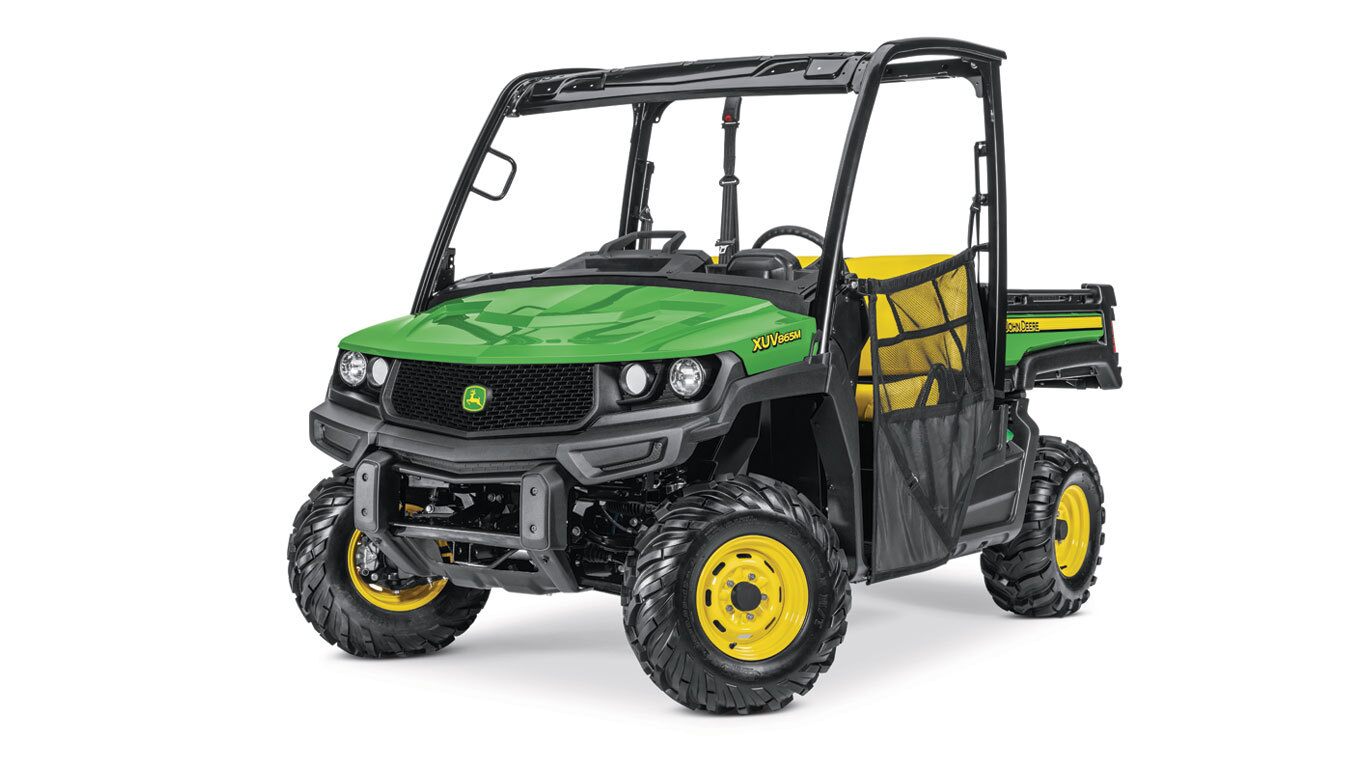

XUV865M UTILITY VEHICLE
Crossover Utility Vehicle
- Three person cockpit
- Power steering for maneuverability
- Over 15 gallons (56 L) of enclosed storage
- Powerful diesel engine system
View Product Brochure
Features
Whether it is a completely open operator station or a factory installed cab, the interior has been redesigned with comfort and ergonomics in mind.
- Gear shift control and differential shifter to the dash
HVAC dash shown (M trim) |
- Tilt steering
Tilt steering | Tilt steering (up position) | Tilt steering (down position) |
- Bench seat with diver adjustment
Bench seat adjustment |
- Three-wide seating
Seating |
The machine is powered by an 854-cc (52.1-cu in.), 3-cylinder, liquid-cooled, four-cycle diesel engine. It produces 48 Nm of torque (35.5-lb-ft) of torque at 2600 rpm.
The advanced engine delivers superb starting, idling, and throttle response during operation.
The engine offers the following performance and reliability features:
- Indirect-injection diesel with glow plugs ensures fast starts in cold temperatures
- 17.1 kW (22.9 hp*) at 3600 rpm
- Overhead valve design for greater efficiency and fuel economy
- Spin-on oil filter for easy servicing
- Quiet operation through the entire rpm range
- Molybdenum-coated pistons
- High-stiffness cylinder block and gearcase
- High-flow water pump and optimized water jackets maintain a steady operating temperature and eliminate hot spots
- Full-pressure lubrication system
- In-line mechanical fuel pump
- Five-point, rubber isolated for quiet operation and minimal vibration
- Dry replaceable dual-element air cleaner with remote intake and a restriction indicator
- See-through coolant recovery tank permits the operator to check the coolant level without removing the radiator cap
- Open front grille allows proper air flow and ventilation to the radiator.
* The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.
To complement the robust frame, the XUV is equipped with four-wheel independent suspension.
A dual A-arm front and rear suspension provides a smooth ride over challenging terrain and excellent hauling characteristics.
The entire suspension system has been optimized to handle no cargo to maximum cargo without compromising ride quality or vehicle stability.
Dual A-arm independent front suspension features include:
- 200.7 mm (7.9 in.) of travel provides ample wheel travel to keep all four wheels on the ground for superior traction, excellent ride quality, and vehicle control
- Heavy-duty nodular cast-iron knuckles support the constant-velocity (CV) shaft and wheel
- Maintenance-free rubber torsional A-arm pivots for long life and quiet operation
- CV shaft protection from sticks that may puncture the rubber boot
- Coil-over shocks absorb the most demanding terrain
Dual A-arm independent rear suspension features include:
- Unequal length and dual A-arm construction for superior wheel control and travel
- 231.14 mm (9.1 in.) of total travel provides ample wheel travel to keep all four wheels on the ground for superior traction, excellent ride quality, and vehicle control
- Coil-over shocks absorb the most demanding terrain
- A-arms made from square/rectangular tubing reduce weight while remaining rigid
- Heavy-duty nodular cast-iron uprights support wheel loads with a double row of ball bearings
- CV driveshaft protection from sticks that may puncture the rubber boot
- Rear sway bar for lateral stability
The Gator™ XUV Crossover Series Utility Vehicle has a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously-variable clutch system to the transaxle.
Key elements of the drive system include:
Variable-speed drive
The variable-speed drive consists of two clutches and a drive belt:
- Drive clutch is attached to the engine.
- Driven clutch is attached to the transaxle.
Features include:
- The engine braking system utilizes a tight belt for operation, requiring an idler sleeve on the primary clutch for neutral. The secondary clutch is a build-on-shaft design that utilizes a cam to tune the acceleration and deceleration of the vehicle. The clutch will stay engaged, providing deceleration until approximately 5 km/h (3 mph).
- The continuously variable transmission (CVT) air intake draws in 50 percent more air versus previous designs to reduce heat and the amount of water ingestion into the CVT system. The system will reduce belt slippage and improve durability.
- A low- and high-speed forward gear offering:
- Low range is 0 km/h to 47 km/h (0 mph to 29 mph), XUV835
- Low range is 0 km/h to 24 km/h (0 mph to 15 mph), XUV865
- High range is 0 km/h to 72 km/h (0 mph to 45 mph), XUV835
- High range is 0 km/h to 51 km/h (0 mph to 32 mph), XUV865
- Ability to creep along slowly to maneuver in tight spaces
- Standard full-clutch enclosure with high speed fan provides longer belt and clutch life
- High-ratio clutches with three cam weights for maximum belt-clamp load in high torque conditions
NOTE: Delivery and torque to the ground depends on tire size, which is a function of nominal size and pressure.
How the variable-speed drive works:
- As engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
- As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
- With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
- The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts drive speed upward or downward so that engine rpm remains optimal.
Transaxle, mechanical front-wheel drive (MFWD), and constant velocity (CV) shafts
Operator interface features:
- On-demand true four-wheel drive (4WD) system with an auto-locking front differential and dash-mounted electronic rocker switch is best in class. When the rocker switch is in the on 4WD position, the front differential will automatically lock for extra traction when needed, but when the rocker switch is in the off two-wheel drive (2WD) position, the vehicle will remain in 2WD.
- Provides exceptional traction in challenging conditions
- Maintains turf-friendly operation in 2WD mode
- Illuminated for visibility in low-light condition
Transaxle features:
- Two-speed, fully-enclosed oil bath transaxle allows for superior pulling ability
- Cast-aluminum design is the most robust in the industry
- Helical forward and reverse gears are used for quiet operation
- Rear traction assist (differential lock) is built in and can be engaged on demand
- Allows locking the rear drive wheels together
- Provides increased traction in tough spots
NOTE: Differential design reduces scuffing of the turf during turns because it allows the inside wheels to turn slower than the outside wheels.
- Neutral start safety interlock for engine ignition system
- Large, sealed bearings are located inside the housing for better protection and durability
- Contains gear case for transferring power to the MFWD
- Splined shaft interfaces for maximum torque transfer and durability
- All drive gears machined from highest grade gear steel
- Protected by a skid plate
MFWD features:
- Electronic design is auto-locking for ease of use
- Performs like a locking differential when engaged, but like an open differential when cornering
- Offers positive engagement of both front wheels in forward and reverse as a differential package
- Automatic engagement on the fly—no shift linkages required
- Protected by a skid plate and frame
Drive shaft features:
- Rear CV shaft diameter measures 27 mm (1.1 in.) and is designed for peak engine and braking torque
- Front CV shaft diameter measures 23 mm (0.91 in.) and is designed for peak engine torque
- Propshaft is designed for peak engine torque
- All CV shaft and propshaft joints are maintenance free and protected by exclusive thermoplastic elastomer (TPE) boots for durability
The deluxe cargo box consists of a 15 percent glass-filled polypropylene composite material that eliminates rust and dents and reduces noise.
Deluxe cargo box tailgate
The tailgate can be opened or removed for easier cleanout and to carry longer items. The tailgate has been improved, features truck-like performance, and can be operated with one hand.
The standard-installed lanyards can also be removed to lower the tailgate to 150 degrees for convenient loading and unloading tasks.
Deluxe cargo box tilt
The deluxe cargo box is easier to latch, unlatch, raise, and lower with the integrated handle design and gas assist.
A prop rod is provided to hold the box in the upright position for operator convenience, as well as limit box pivot travel.
Integrated tie-down points
The deluxe cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:
- Four corners inside the cargo box bed
- Four points on the load guard directly behind the operator station (A)
- Tie-down bars on either side of the cargo box (B)
- Six points on the underside of the cargo box frame (circled)
Converting deluxe cargo box to a flatbed
Optional accessories for the deluxe cargo box:
- See attachment Sales Manual information
Specifications
Length | 1143 mm (45 in.) |
Width | 1320 mm (52 in.) |
Depth | 304 mm (12 in.) |
Volume | 0.46 m3 (16.4 cu ft) |
Weight capacity | 454 kg (1000 lb) |
Dump angle | 47 degrees |
CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.
On M- and R-trim vehicles, adding attachments and accessories is made easier by the inclusion of some main wiring harnesses that facilitate efficient hook-up.
Cargo box lift | Backup alarm | Brake / Tail / Reverse lights | Speed limiter kit | Base radio | Heater | 4500 lb winch | Premium radio (base radio kit needed) | LED lights - front OPS | Windshield wiper | Windshield washer | LED lights - brushguard | LED headlights | Turn signals | Horn | Beacon light | LED lights - rear OPS | Sprayers | Spreaders | AMS integration kit | |
E | a | a | a,c | a,c,d | a,c,d | a,c,d | a,b | a,b | a,b | a,b | a,c,e | a,c,e | a,f | a,f | a,c,e,f | |||||
M open | c | c,d | c,d | c,d | b | b | b | b | c,e | c,e | f | f | c,e,f | |||||||
M cab | b | b | b | b | e | e | f | f | e,f | |||||||||||
R | f | f | f |
= connections in base harness | |
a | E-spec Attachment Harness |
b | Front Attachments Harness |
c | Roof attachment harness |
d | Front cab harness |
e | Rear cab harness |
f | Dash port harness |
* | If blank, the base chassis harness has the connector for the attachment |
This Gator™ XUV Crossover Utility Vehicle is equipped with power steering and a dual A-arm front suspension. These automotive-type systems exhibit excellent handling characteristics, as well as responsive steering and low steering effort:
- Steel ball-bearings secure the steering shaft and deliver smooth, responsive operation
- Completely sealed rack and pinion for long life
- Low steering ratio (lock-to-lock) provides more responsive steering and less operator input
- Shaft U-joints are phased for a smooth, uninterrupted motion of the steering wheel
- Tilt steering wheel with XXXX in of travel
Electric power-assist steering (EPAS) system has advanced features:
- Anti-kickback feature reduces the amount of steering unwinding when traversing difficult terrain.
- The system is speed-sensing and adjusts steering effort as the speed of the vehicle changes.
- As speed increases, there is less steering assist for improved road feel.
- As speed decreases, steering assist increases to give lower steering efforts for improved maneuverability.
- A warning/functional light on the instrument panel provides self-diagnostics and a warning light in the situation of no assist.
- Torque sensor measures steering wheel input so the on-board computer can provide the appropriate output for various driving situations.
With the EPAS system, the operator maintains a direct mechanical linkage from the steering wheel to the front wheels. The power steering system interfaces mechanically with the steering system by being inserted between the steering wheel and the rack-and-pinion assembly.
A differential torque sensor is integrated into the power steering assembly. The circuit board assembly is also integral with the power steering assembly.
Power steering does not reduce turning radius but significantly reduces steering effort by approximately 85 percent compared to models without power steering.
EPAS interface diagram
The numbered descriptions refer to the EPAS interface diagram shown above:
- Torque sensor
- Electronic control unit (ECU)
- Fail-safe relay
- Current/thermal control circuit
- Reduction gears
- DC motor
- Rack and pinion
- Function/warning light
- Key power and ground
- Vehicle speed sensor
- Instrument cluster
- Relay module
The M trim adds electrical power-assist steering (EPAS) and brings in the main wiring harness for easier attachment hook-up. Cabs are available in this trim level. Heating, ventilation, and air conditioning (HVAC) is also an option within the M-trim level.
Build-to-order options
- Roof standard on all units – can order less roof on open station units
- Available factory-installed winch on M- and R-trim units
- Available factory-installed front glass windshield on M Trim open station units
- Available factory-installed rear glass panel on M Trim open station units
- Available factory-installed brush guard
- Available factory-installed brush guard extensions
- Available factory-installed rear cargo box fender guards (rear bumper required, also factory installed)
Specifications
Compare the specifications of up to 4 models
Key Specs | xuv865m-utility-vehicle Current Model |
---|---|
Engine power | 17.0* kW 22.8 hp |
Maximum traveling speed | 0-32 hi forward, 0-15 lo forward, 0-18 reverse mph 0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h |
Cargo box dimensions | 1143 x 304.8 x 1320 mm 45 x 12 x 52 in. |
Cargo box capacity (weight) | 454 kg 1000 lb |
Towing capacity | 907 kg 2000 lb |
Front suspension | Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel |
Rear suspension | Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel |
Final drive | Two speed, oil bath |
Four wheel drive | On-demand true four-wheel drive system |
Fuel capacity | 42.4 L 11.2 U.S. gal. |
Engine | |
Type | 4-cycle diesel |
Displacement | 854 cc |
Power | 17.0* kW 22.8 hp |
Cooling system | Liquid |
Drivetrain | |
Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
Final drive | Two speed, oil bath |
Four wheel drive | On-demand true four-wheel drive system |
Traction assist | Positive locking, mechanically actuated (hand-operated) |
Descent control | Yes |
Maximum traveling speed | 0-32 hi forward, 0-15 lo forward, 0-18 reverse mph 0-51 hi forward, 0-24 lo forward, 0-29 reverse km/h |
Suspension | |
Front | Fully independent dual A-Arm with adjustable coils; 7.9 inches (200.7 mm) of travel |
Rear | Fully independent dual A-Arm with adjustable coils and sway bar; 9.1 inches (231.14 mm) of travel |
Brakes | |
Type | Front/rear hydraulic disc with twin piston front calipers |
Park brake | Driveline, internal wet multi-disc, foot operated (hand release) |
Tires / Wheels | |
Front | 25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims) |
Rear | 25x9-12 Terrahawk AT, 27x9-R14 Maxxis Big Horn Radials (on Alloy Rims), or Maxxis Big Horn Radials (on Steel Rims) |
Dimensions / Capacities | |
Wheelbase | 2146 mm 84.5 in. |
Dry weight | 839 kg 1845 lb With Cab and HVAC: 1001 kg With Cab and HVAC: 2202 lb *Additional Attachments and Accessories will add weight |
Length | 3228 mm 127 in. |
Width | 1618 mm 63.7 in. With doors: 1763 mm With doors: 69.4 in. |
Height | 1981 mm 78 in. With roof: 1987 mm With roof: 78.25 in. |
Tread centers | Front: 1341 mm Front: 52.8 in. Rear: 1259 mm Rear: 49.6 in. |
Ground clearance | 284 mm 11.2 in. |
Fuel capacity | 42.4 L 11.2 U.S. gal. |
Cargo box dimensions | 1143 x 304.8 x 1320 mm 45 x 12 x 52 in. |
Cargo box capacity (weight) | 454 kg 1000 lb |
Payload capacity | 680 kg 1500 lb |
Towing capacity | 907 kg 2000 lb |
Hitch | Standard 2-in. receiver |
Features | |
Color | Green/Yellow, Camouflage, Olive and Black |
Power steering | No on E Trim; Yes on M and R Trim |
Battery / Alternator / Power port | 480 CCA 55 amp @ 7000 rpm, regulated, 660 watts (85 amp @ 7000 rpm, 1020 watts, for HVAC units) |
Instrumentation | Digital Display (system diagnostic light, speed, rpm, 4WD indicator, fuel level, coolant temperature, hour meter, miles, park brake light, glow plug indicator) |
Storage | 4 Cup Holders (2 additional for cab units), in dash, Under Seat (56.69 L), Glovebox (3.85 L), Optional Under Hood - except for HVAC units or units with the dealer installed heater kit |
Seating | Bench (Available Bucket Seats on E and M Trim) |
Headlights | Halogen - Single Beam (LED Dual Beam on R Trim) |
Accessories and Attachments
Ag Management Solutions
The AMS integration kit allows the operator to mount a StarFire Receiver and GreenStar display (both receiver and display sold separately) to the Gator™ Utility Vehicle.
Key features of the AMS integration kit:
- Compatible with StarFire iTC, StarFire 3000, and StarFire 6000 Receivers
- Compatible with GreenStar 2 1800, GreenStar 2 2600, GreenStar 3 2630, and John Deere 4640 Universal Display
- Ability to mount receiver to the poly roof or on the occupant protective structure (OPS) alone
NOTE: Additional components are required to support the John Deere 4640 Universal Display include:
- AL212683 (1)
- 21M7577 (2)
Common applications:
- Boundary mapping
- Flagging field obstacles
- Soil sampling
Compatibility:
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Electrical harness requirements:
XUV835/865 | Attachment harness required (see below) |
E | 1, 3, 5, 6 |
M (open station) | 3, 5, 6 |
M (cab, factory installed) | 5, 6 |
R | 6 |
1 | E-spec attachment harness |
2 | Front attachment harness |
3 | Roof attachments harness |
4 | Front cab harness |
5 | Rear cab harness |
6 | Dash port harness |
Code | Attachment | Description |
BUC10634 | AMS integration kit |
Backup Alarm
The back-up alarm kit alerts pedestrians when the Gator™ is operating in reverse:
- Includes alarm, mounting brackets, wire harness, and reverse switch (if not already installed)
- Conforms to SAE J994 performance specifications for a Type D alarm and is 89 dBA per the SAE specification (measured at 4 ft)
Bumper
The rear bumper offers stylish, heavy-duty rear protection to the vehicle.
Compatible with:
- Model year 2011 and later Gator™ XUV 625i, XUV 825, and XUV 855 Utility Vehicles
- Model year 2010 and later Gator TX, TX Turf, TH 6X4 Gas, TH 6X4 Diesel, and TE Utility Vehicles
- Model year 2018 and later Gator XUV835 and XUV865 Utility Vehicles
Cab
Key features:
- Enhances vehicle styling with an accent color panel for the cab door (sold separately)
Compatibility:
- Model year 2019 to current XUV835 and XUV865 Utility Vehicles
Key features
- Tightly seals against the occupant protective structure (OPS) with the aid of a double-bulb seal
- Roll-down windows
- Easy-to-operate door release lever
- Gas strut on the door to help it open
- Color panels (green and yellow, olive, or camo) to enhance styling of the vehicle (sold separately)
- Lockable using the ignition key
- Integrated drink/storage pocket
- Tempered glass
- Heat-absorbing tinted glass absorbs solar radiation coming in through the window, reducing solar heat in the operator station
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Large, fixed window for greater visibility
- Tempered glass
- Heat-absorbing tinted glass absorbs solar radiation coming in through the window, reducing solar heat in the operator station
- Helps keep dust out of the operator station when installed with a full windshield
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features:
- Enhances vehicle styling with an accent color panel for the cab door (sold separately)
Compatibility:
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Enhances the vehicle styling with an accent color panel for the cab door (sold separately)
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Made from premium, heavy-duty, 600 denier-solution dyed, water-resistant, UV-stabilized polyester for mold and tear resistance
- Durable, polyvinyl chloride (PVC) windows resists yellowing or cracking. Windows opens easily with a zipper and can be secured in place with straps.
- Lower PVC window for enhanced visibility
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Compatible with the following cab components:
- Poly roof
- Canvas roof and rear panel
- Canvas rear panel
- Cab rear panel
- Full poly windshield
- Glass windshield
Key features
- Made from premium, heavy-duty, 600 denier-solution dyed, water-resistant, UV-stabilized polyester for mold and tear resistance
- Durable, polyvinyl chloride (PVC) rear window resists yellowing or cracking. Window opens easily with a zipper and can be secured in place with straps.
- Helps keep dust out of the operator station when installed with a full windshield
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Compatible with the following cab components:
- Cab doors – both poly and canvas
- Poly roof
- Full poly windshield
- Glass windshield
Cab Operator's Station
Cell phones, global positioning system (GPS), and other devices are key tools for farming today. John Deere has now made it easier than ever to incorporate these tools into the operator station.
For proper machine operation, it is critical that accessory devices and tools be located and mounted where they are accessible but do not interfere with visibility and controls. The new RAM® mount kit has been specially developed to meet this need in John Deere tractors and now utility vehicles.
Simply remove the large wing nut from the assembly, insert the stud into any open hole in the occupant protective structure (OPS), and tighten down the jam nut.
Key benefits:
- Patented RAM X-Grip™ holder fits most cell phones and similar devices including iPod®, iPad®, iPhone®, BlackBerry®, Samsung Galaxy® and others.
- Mounts to the holes in the OPS
- Ball joints allow for variable positioning
- Holds firm even in rugged terrain
- The holder is compatible with many other RAM® products with their B size or 25.4-mm (1-in.) ball accessories
The RAM X-Grip has a clean and clever four-leg design that sports great holding power without hiding the phone behind foam pads and plastic.
Features:
- Rustproof
- High-strength composite and stainless-steel construction
- Spring-loaded holder expands and contracts for custom fit
- Minimum width: 1.875 in. (47 mm)
- Maximum width: 3.25 in. (82 mm)
- Depth: 0.875 in. (22 mm)
- Rubber-coated tips will hold device firm and stable
- Easy access grip knobs for quick release of your device
Warranty:
90 days, limited.
RAM and RAM X-Grip are trademarks of National Products Inc. iPad, iPod, and iPhone are trademarks of Apple, Inc. BlackBerry is a trademark of Research In Motion Limited (RIM). Samsung Galaxy is a trademark of Samsung Electronics Co.
Cargo Box
The 5-gal. (18.9-L) pail holder is ideal for operators who want to maximize the work capability of their Gator™ Utility Vehicle. The 5-gal. (18.9-L) pail holder keeps pails in place within the cargo box, ensuring that they stay safe and secure. Featuring the quick-clamp mounting system, it mounts easily to the cargo rails of the cargo box with just one clamp.
The cargo bed extender conveniently extends the rear of the cargo bed, and also acts as a cargo box divider when it is flipped inside of the cargo box. The cargo bed extender easily flips in or out with the use of quick-pull pins.
The deluxe cargo box bed mat not only protects the steel floor from scratches and dents, it also provides additional cushioning and slip resistance to items being hauled in the cargo box.
The Gator™ XUV Series can be equipped with an optional divider for the deluxe cargo box. The dividers can be positioned at the front or rear of the cargo box bed. To change positions of the dividers, simply release the speedrail locks by hand and slide into new position, then close the locks to secure the dividers.
The cargo box side extension kit expands the versatility of the Gator™ Utility Vehicles and is ideal for those who are enhancing their property and landscape. The extensions allow operators to haul twice the volume (not to exceed cargo box weight capacity) of light material such as grass clippings and mulch.
Product features include:
- Four-sided structure that increases cargo box side height to 533 mm (21 in.) and volume to 0.74 m3 (26 cu ft)
- Mounted on the sides and front with hardware, while the tailgate can be attached or removed without tools
- Tailgate pivots at the top (similar to a dump truck) for ease of dumping loose material
- Laser-cut, heavy-gauge, powdered-coated steel provides excellent durability
- Compatible with all model year 2011 to current Gator XUV625i, XUV825i, XUV825i S4, XUV855D, XUV855D S4, and M-Gator A2 Utility Vehicles
- Compatible with model year 2010 to current Gator TX 4X2, TH 6X4 Gas, TH 6X4 Diesel, TE, and TX Turf Utility Vehicles
- Compatible with model year 2018 and newer gas and diesel HPX Utility Vehicles.
- Compatible with Gator cabs and bedliner
NOTE: The cargo box side extensions are not intended to increase the rated cargo box carrying capacity per the vehicle specification.
Key features
- The cover closes off the top of the side extensions, ideal for hauling hunting dogs and small animals
- Easily attaches to the side extension kit (required, sold separately)
- Dimensions: 132-cm (52-in.) wide x 65-cm (25.5-in.) tall x 114-cm (45-in.) deep
Compatibility
- Model year 2011 to current XUV625i, XUV825i/E/M, XUV825i/E/M S4, XUV855D/E/M, and XUV855D/E/M S4 Utility Vehicles
- Model year 2010 to current TX, TX Turf, TH, and TE Utility Vehicles
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Model year 2018 to current HPX615 and HPX815 Utility Vehicles
Label kit for toolboxes (Green & Yellow) - BM26220
A – Fender flare
B – Fender
The rear fender flare kit minimizes debris from reaching the operator station.
Product features include:
- Two pliable fender flares (one for each side)
- Hardware for mounting on the sides
- Compatible with all model year 2011 to current Gator™ XUV825, XUV825 S4, XUV855, XUV855 S4, XUV835, and XUV865 Utility Vehicles
- Compatible with model year 2010 to current Gator TX 4X2, TH 6X4 Gas, TH 6X4 Diesel, TE, and TX Turf Utility Vehicles
- Compatible with model year 2018 and newer gas and diesel HPX Utility Vehicles
The side tool rack enables the user to maximize the use of their cargo box by carrying long-handled tools, such as trimmers, shovels, and rakes, on the outside of the box. The holders are adjustable, allowing the users to carry a wide array of items in the racks.
Easily mount a spare tire to the side of the cargo box with this convenient kit.
Recommended to carry spare front tire, as the front tire can be mounted on either the front or rear hubs.
Key features
- Holds two firearms up to 1.3 m (51 in.) in length
- Firearm support blocks can be removed to transport a wide array of gear
- Bag easily attaches and detaches to cargo box with quick-connect latches for easy storage in the off season
- Convenient carry straps
- Made from waterproof, mildew- and abrasion-resistant material to keep gear dry
- Oversized, corrosion-resistant zippers for durability and ease of use
- Rain flap covers the zipper to prevent water infiltration
Compatibility
- Model year 2011 to current XUV625i, XUV825i, XUV825i S4, XUV855D, and XUV855D S4 Utility Vehicles
- Model year 2010 to current TX, TX Turf, TH, and TE Utility Vehicles
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Ordering information
Available through Order Zone
Cargo Box Lift
The Gator™ XUV Series can be equipped with an optional power lift for the cargo box. This is one of the most important accessories for increasing work efficiency. It is an excellent complement to these highly capable utility vehicles.
Key features
- Capable of lifting a maximum vehicle cargo box load of 454 kg (1000 lb)
- Lifts box to 49 degrees from horizontal for ease of service and cargo box load removal
- Quick horizontal-to-49-degree time
- Can be installed in minutes using the vehicle's prewired connectors and mounting points
- Compact design fits nicely around the transmission and linkages, providing full protection
- Fully sealed and weatherproof design does not require maintenance and is built for maximum durability
- Overload protection protects against misuse
Compatibility
- Model year 2018 to current XUV825 and XUV855 Utility Vehicles
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Cold Start Packages
Attached to the engine cylinder block, the engine coolant heater plugs into a 120-V electrical outlet to warm the engine for fast cold-weather starts. It is rated for 400 W output power.
Attached to the engine cylinder block, the engine coolant heater plugs into a 120-V electrical outlet to warm the engine for fast cold-weather starts. It is rated for 400 W output power.
Cover
The deluxe cargo box cover easily installs without tools and keeps the cargo secure and protected from the elements. It is compatible with Gator Utility Vehicles equipped with the all-new deluxe cargo box.
Compatible with all model year 2011 - current Gator XUV 625i, XUV 825i, XUV 855D, TX, TX Turf, TH 6X4, TE, M-Gator™ A2, and M-Gator A3 Utility Vehicles.
Compatible with all model year 2013 - current Gator XUV 825i S4 and XUV 855D S4 Utility Vehicles.
Ordering information
Please contact your local John Deere dealer for availability and pricing information.
Deluxe cargo box cover - Camo
Order number: LP19879
Key features
- All-season protection against sun damage, rain, dust, and tree sap
- Reinforced corners for added durability
- Fabric coated for maximum water resistance and repellency
- Elastic shock cord in bottom hem for a quick, custom fit
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Ordering information
Available through Order Zone
Drawbar
The 48-mm (1-7/8-in.) ball hitch attaches to the drawbar or rear hitch to allow towing.
The ball hitch is available through Service Parts.
The 51-mm (2-in.) ball hitch attaches to the drawbar or rear hitch to allow towing.
The ball hitch is available through Service Parts.
Drawbar
Description:
- Kit includes a 51-mm (2-in.) drawbar, 10-mm (0.39-in.) pin, and hair cotter pin
- Steel construction has a 25-mm (1-in.) ball hole size
- Can be mounted in the standard rear receiver hitch or the optional front receiver hitch
- Compatible with all Gator model year 2011-current XUV560, XUV560 S4, XUV590, XUV590 S4, XUV 625i, XUV 825, XUV 855, RSX860, and M-Gator™ A2 Utility Vehicles
- Compatible with HPX 615 and 815 Utility Vehicles
- Compatible with XUV 620i and XUV 850D Utility Vehicles
NOTE: Compatible with all Gator HPX Utility Vehicles if equipped with an optional 51-mm (2-in.) front receiver hitch. An optional 51-mm (2-in.) rear receiver is not available for the Gator HPX models. A 32-mm (1-1/4-in.) rear receiver hitch and drawbar are available for the Gator HPX models.
Floor Mat
Key features
- Kit includes left and right floor mats
- Made from 8-mm (5/16-in.) thick textured rubber
- Tool-less install and easy removal for cleaning
- Helps further dampen operator station noise
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Front Rack
Key features
- 124.5-cm (49-in.) long x 36-cm (14.25-in.) wide x 11-cm (4.25-in.) deep
- Welded steel tubing
- Design allows for convenient tie-down points to secure load
- 45-kg (100-lb) capacity
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Requires brush guard to be installed
Available through OrderZone
Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel
Special features:
- Velcro flap closure
- Padded to protect device and contents
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Pair of 6-in. (152.4-mm) MOLLE sticks included
- Available in black or REALTREE HARDWOODS HD™ pattern
- Inner liner made of high-density coated pack-cloth nylon fabric
- Built-in drain hole
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
Available through OrderZone
Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel
Special features:
- Velcro flap closure
- Padded to protect device and contents
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Pair of 6-in. (152.4-mm) MOLLE sticks included
- Available in black or REALTREE HARDWOODS HD™ pattern
- Inner liner made of high-density coated pack-cloth nylon fabric
- Built-in drain hole
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
Available through OrderZone
Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel
Special features:
- Military-grade rapid extraction clips
- Fits standard round 2.5-lb (1.1-kg) fire extinguishers
- Padded to protect contents
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Pair of 6–in. (152.4-mm) MOLLE sticks included
- Available in black or REALTREE HARDWOODS HD™ pattern
- Inner liner made of high-density coated pack-cloth nylon fabric
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
Available through OrderZone
Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel
Special features:
- Military-grade rapid extraction clips
- Fits standard round 2.5-lb (1.1-kg) fire extinguishers
- Padded to protect contents
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Pair of 6–in. (152.7-mm) MOLLE sticks included
- Available in black or REALTREE HARDWOODS HD™ pattern
- Inner liner made of high-density coated pack-cloth nylon fabric
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
Available through OrderZone
Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel
Special features:
- Dual military-grade zippers and pulls
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Pair of 5–in. (127-mm) MOLLE sticks included
- Available in black or REALTREE HARDWOODS HD™ pattern
- Inner liner made of high-density coated pack-cloth nylon fabric
- Built-in drain hole
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
Available through OrderZone
Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel
Special features:
- Dual military-grade zippers and pulls
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Pair of 5–in. (127-mm) MOLLE sticks included
- Available in black or REALTREE HARDWOODS HD™ pattern
- Inner liner made of high-density coated pack-cloth nylon fabric
- Built-in drain hole
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
Available through OrderZone
Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel
Special features:
- Military-grade zippers and pulls
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Pair of 5–in. (127-mm) MOLLE sticks included
- Available in black or REALTREE HARDWOODS HD™ pattern
- Inner liner made of high-density coated pack-cloth nylon fabric
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
Available through OrderZone
Compatible with bench seat covers and operator protection system (OPS) MOLLE storage panel
Special features:
- Military-grade zippers and pulls
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Pair of 5–in. (127-mm) MOLLE sticks included
- Available in black or REALTREE HARDWOODS HD™ pattern
- Inner liner made of high-density coated pack-cloth nylon fabric
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
Guards
Key features
- Provides a modern and aggressive appearance
- Heavy-duty, 44.45-mm (1.75-in.) diameter, steel tube construction
- Welded steel brush guard provides protection for the front grille, lights, and hood
- Easy-to-use quick pull pins allow the brush guard to be hinged forward to gain access under the hood
- Includes mounts for auxiliary light-emitting diode (LED) lights (sold separately)
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Enhances the aggressive appearance of the vehicle
- Easily attaches to the brush guard (required – sold separately)
- Provides additional protection to the side hood and fender area without adding additional overall width to the vehicle
- Still allows full entry under the hood when brush guard is hinged forward
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Kit contains both front and rear CV guards
- Additional added protection for the A-arms and CV joints
- High-strength, formed steel guards handle impacts while maintaining a low, unsprung mass to provide exceptional ride quality
- Easily bolts to the A-arms
- Drainage holes on the bottom of the guards prevent buildup of dirt, grass, and other loose materials
Compatibility
- Model year 2018 XUV835 and XUV865 Utility Vehicles
Key features
- Connects with rear bumper (required – sold separately)
- Provides enhanced styling in addition to heavy-duty protection to the side of the cargo box
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Easily attaches to the brush guard (required – sold separately)
- Provides protection to the front fender area
- NOTE: With fender guards installed, the overall width of the vehicle increases to 1.75 m (69 in.).
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Provides additional protection to the operator and passengers
- NOTE: Never carry loads in the cargo box over the load guard.
- Perforated, black metal screen easily attaches to the occupant protective structure (OPS)
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Not compatible with cab rear panel
Key features
- Provides protection to the cab rear-panel glass
- NOTE: Never carry loads in the cargo box over the load guard.
- Perforated, black metal screen easily attaches to the cab rear panel (required – sold separately)
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Harnesses
CAN Bridge Control Kit - BUC10316
Key features
- The front attachment harness includes connections for the following kits:
- Light-emitting diode (LED) headlights
- Turn signals
- Horn
- Brush-guard-mounted auxiliary lights
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- The front attachment harness (dash port) includes connections for the following kits:
- Rear sprayer
- Rear spreader
- Blades
- GreenStar™ Display as part of the Ag Management Solutions (AMS) integration kit
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- The front cab attachment harness includes connections for the following kits:
- Front auxiliary lights
- Windshield wiper
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features:
- The hydraulic blade and winch harness includes connections for the following kits:
- Hydraulic blade
- Winch
Compatibility:
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- The rear cab attachment harness includes connections for the following kits:
- Rear auxiliary lights
- Beacon light
- Ag Management Solutions (AMS) receiver harness
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- The roof attachment harness includes connections for the following kits:
- Front cab attachment harness
- Rear cab attachment harness
- Upper speakers for premium stereo kit
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Heater
Key features
- Four 5.1-cm (2-in.) adjustable vents, located for defrost and floor heat
- High and low fan speeds
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Horn
Key features
- Frequency: 410 Hz
- Sound pressure level: 100+ dB(A)
- Water-sealed type
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Electrical harness requirements
XUV835/865 | Attachment harness required (see below) |
E | 1, 2 |
M (open station) | 2 |
M (cab, factory installed) | 2 |
R | --- |
1 | E-spec attachment harness |
2 | Front attachment harness |
3 | Roof attachments harness |
4 | Front cab harness |
5 | Rear cab harness |
6 | Dash port harness |
Lighting
Key features
- 76-mm (3-in.) round, light-emitting diode (LED) strobe light provides excellent visibility for vehicle bystanders
- Especially useful for working around properties and job sites
- Acrylic amber lens resists scratching and scuffing
- Impact-resistant nylon housing
- Society of Automotive Engineers (SAE) J845 (Class 3)-compliant
- UL® recognized
- Flash rate: 60 +/- 10 fpm
- Stands 21.3-cm (8.4-in.) tall from roof/occupant protective structure (OPS)
- Folds down out the way when not in use
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Electrical harness requirements
XUV835/865 | Attachment harness required (see below) |
E | 1, 3, 5 |
M (open station) | 3, 5 |
M (cab, factory installed) | 5 |
R | --- |
1 | E-spec attachment harness |
2 | Front attachment harness |
3 | Roof attachments harness |
4 | Front cab harness |
5 | Rear cab harness |
6 | Dash port harness |
UL is a trademark of UL LLC.
Key features
- The LED driving lights can be mounted on the front occupant protective structure (OPS), front cab, rear OPS, rear cab, or brush guard
- Beam pattern: driving (focused, intense beam of light good for illuminating a stretch of road directly in front of the vehicle)
- Lamp sealing: IP69K
- Light output (per light): 1150 lumens
- LED color temperature: 5000 K
- Amp draw (per light): 1.4 amps
- 6 LEDs per light
- Aluminum housing
Compatibility
- Model year 2011 to current XUV625i, XUV825i, XUV825i S4, XUV855D, and XUV855D S4 Utility Vehicles
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Model year 2012 to current XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles
- HPX Utility Vehicles
Key features
- Upgrade from halogen headlights
- High/low beam
- Raw lumen output (per light): 1,075 (high beam), 430 (low beam)
- Effective lumen output (per light): 720 (high beam), 240 (low beam)
- Nominal LED color temperature: 5000 K
- Current draw: 1.14 amps (high beam), 0.41 amps (low beam)
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Electrical harness requirements
XUV835/865 | Attachment harness required (see below) |
E | 1, 2 |
M (open station) | 2 |
M (cab, factory installed) | 2 |
1 | E-spec attachment harness |
2 | Front attachment harness |
3 | Roof attachments harness |
4 | Front cab harness |
5 | Rear cab harness |
6 | Dash port harness |
Key features
- The LED work lights can be mounted on the front occupant protective structure (OPS), front cab, rear OPS, rear cab, or brush guard
- Beam pattern: flood (spread of light over a wider, shorter distance)
- Lamp sealing: IP69K
- Light output (per light): 1200 lumens
- LED color temperature: 5000 K
- Amp draw (per light): 1.4 amps
- 6 LEDs per light
- Aluminum housing
Compatibility
- Model Year 2011 to current XUV625i, XUV825i, XUV825i S4, XUV855D, and XUV855D S4 Utility Vehicles
- Model Year 2018 to current XUV835 and XUV865 Utility Vehicles
- Model Year 2012 to current XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles
- HPX Utility Vehicles
The brake and taillight protector offers increased protection to the taillight assembly from incidental contact.
Mirrors
Key features
- Convex mirror reflects a wide-angle image to help the operator see behind the vehicle
- Connected to ball stud for easy adjustment
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Kit allows mirrors to be installed on either an open-station or cab vehicle
- Mirrors can be easily adjusted based on operator preference
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Operator's Station
Key features
- Allows the cell phone and tablet mount to be installed in the upper dash location
- Required for cell phone mount if mounted in the lower dash location
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Shades occupants from the glare of sunlight
- Hinged design
- Tan color
- Kit includes left and right visor. Rearview mirror kit required for installation.
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Keeps tablet at the operator’s fingertips for doing jobs such as soil sampling
- Utilizes a RAM® mount to easily move tablet to desired location
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
RAM is a trademark of National Products, Inc.
Radio
Key features
- Kit includes:
- Wiring harness
- AM/FM antenna
- Head unit mounting bracket
- Two 13.3-cm (5.25-in.) speakers
- Jensen® speakers
- Waterproof
- 45-W root mean square (RMS) power each
- 135-W peak power each
- The head unit is sold separately through Parts. The operator must choose one of the following three head units to complete the stereo:
- SWJHD1130 – heavy-duty stereo with AM/FM, weatherband, and auxiliary input
- SWJHD1635BT – heavy-duty stereo with AM/FM, weatherband, auxiliary input, SiriusXM® satellite radio, and Bluetooth® wireless technology
- SWJHD36AMIC – heavy-duty stereo with AM/FM, weatherband, compact disc (CD), auxiliary input, SiriusXM satellite radio, USB 2.0, and Bluetooth wireless technology
NOTE: Must order head unit through Parts.
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Jensen is a trademark of Electronics Trademark Holding Company LLC. SiriusXM is a trademark of Sirius XM Radio Inc. Bluetooth is a trademark of Bluetooth SIG, Inc.
Key features
- Kit includes:
- Wiring harnesses
- SiriusXM® radio antenna/tuner (XM ready head unit required – sold separately)
- Two 13.3-cm (5.25-in.) upper speakers
- Subwoofer
- Bluetooth® wireless microphone
- Jensen® speakers
- Waterproof
- 45-W root mean square (RMS) power each
- 135-W peak power each
- Jensen subwoofer
- Waterproof
- 20.3-cm (8-in.) amplified subwoofer
- Maximum power: 200 W
- Aluminum mesh grille
- Aluminum housing
- The head unit is sold separately through Parts. The operator must choose one of the following two head units to complete the stereo:
- SWJHD1635BT – heavy-duty stereo with AM/FM, weatherband, auxiliary input, SiriusXM satellite radio, and Bluetooth technology
- SWJHD36AMIC – heavy-duty stereo with AM/FM, weatherband, compact disc (CD), auxiliary input, SiriusXM satellite radio, USB 2.0, and Bluetooth technology
NOTE: Must order head unit through Parts.
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Requires base radio kit
SiriusXM is a trademark of Sirius XM Radio Inc. Bluetooth is a trademark of Bluetooth SIG, Inc. Jensen is a trademark of Electronics Trademark Holding Company LLC.
Roof
Key features
- Made from single-piece construction that mounts to the top and rear of the occupant protective structure (OPS)
- Made from premium, heavy-duty, 600 denier-solution dyed, water-resistant, UV-stabilized polyester for mold and tear resistance
- Durable, polyvinyl chloride (PVC) rear window resists yellowing or cracking. Window opens easily with a zipper and can be secured in place with straps.
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Compatible with the following cab components:
- Cab doors – both poly and canvas
- Full poly windshield
- Glass windshield
Key features
- Enhances the appearance of the operator station with a molded, soft-touch, automotive-style roof headliner
- Made from 3.175-mm (1/8-in.) thick sound-dampening material for improved occupant comfort
- Easily attaches to the roof with cap screws and push darts
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Roof Seal Kit - BUC10711
Seat
Key features
- Protection for the bench seat from wear and stains
- Constructed with military-grade Cordura® fabrics
- Quick and easy installation
- MOLLE attachment locations (MOLLE attachments available through Order Zone)
- Easy access to seatbelts
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Ordering information
Available through Order Zone
Cordura is a trademark of INVISTA North America S.à.r.l.
Bench seat cover (camo) - LP68420
Key features
- Protection for the bench seat from wear and stains
- Elastic-hem cord closure for easy adjustment
- Easy access to seatbelts
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Ordering information
Available through Order Zone
Kit includes two comfort straps for the left and right seat belts.
- Provides relief to the operator's and passenger's upper body when driving over rough terrain by allowing the seat belt to stretch when the seat belt locks
- Moves the upper mounting point of the seat belt down 6 in. (152 mm)
- Can be mounted to both the driver- and passenger-side upper mounting point of the three-point seat belt
- Compatible with all model year 2017 - current Gator™ HPX, XUV625i, XUV825i, XUV825i S4, XUV855D, XUV855D S4, XUV560, XUV560 S4, XUV590i, XUV590i S4, and RSX860i Utility Vehicles when equipped with standard Occupant Protective Structure (OPS)
- Compatible only with standard Occupant Protective Structure (OPS), for deluxe cab frame, order BM22703
Sprayers
Storage
Quality constructed from 16 gauge steel, this industrial tool box is durable enough to handle wear and tear even from the toughest contractors. This tool box keeps tools, equipment, and other valuables secure, clean, dry, and protected from outside elements - due to full weather seal locks and a rust-resistant, powder-coat paint application. Twin commercial-grade gas shocks automatically lift lid for effortless one-handed open/close. Comes complete with key locks to guard against theft.
Product attributes:
- Two lids hinged at the middle allows access from both sides of the vehicle
- Extra-wide lid opening allows easy access to tools and valuables
- Key locks guard against theft (two keys provided)
- Compatible with Gator TX, TH, TE, XUV 625i, XUV 825i/E/M, XUV 825i/E/M S4, XUV 855D/E/M, and XUV 855D/E/M S4, XUV835E/M/R, XUV865E/M/R Utility Vehicles equipped with the deluxe cargo box as shown in the picture above
- Also compatible with Model Year 2018 and newer HPX615 and HPX815
Ordering information
Please contact your local John Deere dealer for availability and pricing information.
Gator tool box
Order number: LP19886
Label kit for toolboxes (Camo) - BM26219
Label kit for toolboxes (Olive & Black) - BM26218
Available through OrderZone
Special features:
- Military-grade mounting hardware included
- Fits device and utility pouches
- Carries up to 30 lb (13.6 kg) of gear
- Constructed with military-grade Cordura™ fabrics
- Utilizes the MOLLE attachment system
- Available in black or REALTREE HARDWOODS HD™ pattern
- Limited 1-year warranty
- Made In U.S.A.
Cordura is a trademark of INVISTA for durable fabrics. REALTREE HARDWOODS HD is a trademark of Jordan Outdoor Enterprises Limited.
This custom toolbox was specifically designed for users desiring more integrated sealed storage in a cargo box.
Side-door opening toolbox features:
- 125-L (33-gal.) sealed storage
- Heavy-gauge sheet metal
- D-rings for tie downs
- Fully sealed lockable latch
- Sealed door
- Door can also be used as a work bench when down
- Can be mounted on either side of the cargo box
| Side-door opening toolbox |
Toolbox weight | 29 kg (64 lb) |
Toolbox capacity | 34 kg (75 lb) |
Toolbox dimensions | -Full box: 109.4-cm (43.1-in.) long X 35-cm (13.8–in.) wide X 32.5-cm (12.8–in.) tall -125-L (33-gal) total volume |
The toolbox can be installed in minutes by simply removing the cargo box sides and tailgate, and bolting the toolbox onto the cargo box.
The toolbox requires the tailgate with brake and tail lights kit (BM26161) and optional label kit:
- BM26220 – green and yellow
- BM26218 – olive and black
- BM26219 – camo
This toolbox is compatible with the following Gator™ Utility Vehicle models:
- TX
- TX Turf
- TE
- TH
- XUV625i
- XUV825i/E/M
- XUV825i/E/M S4
- XUV855D/E/M
- XUV855D/E/M S4
- XUV835E/M/R
- XUV865E/M/R
- Model Year 2018 and newer HPX615 and HPX815
This tailgate kit with brake lights and taillights is specifically designed for compatibility with the top and side-door toolboxes (BM26162 and BM26160).
The tailgate can be installed in minutes once the toolbox and tail lights are installed by bolting them to the tailgate bracket.
Optional label kits are designed to fit with this tailgate:
- BM26220 – green and yellow
- BM26218 – olive and black
- BM26219 – camo
The tailgate is compatible with the following Gator™ utility vehicle models:
- TX
- TX Turf
- TE
- TH
- XUV625i
- XUV825i/E/M
- XUV825i/E/M S4
- XUV855D/E/M
- XUV855D/E/M S4
- XUV835E/M/R
- XUV865E/M/R
- Model Year 2018 - current HPX615 and HPX815
This custom toolbox was specifically designed for users desiring more integrated sealed storage in a cargo box.
Top door opening toolbox features:
- 125-L (33-gal.) sealed storage
- Heavy-gauge sheet metal
- D-rings for tie downs
- Fully sealed lockable latch
- Sealed door
- Toolbox divider
- Removable tool tray
- Can be mounted on either side of the cargo box
| Top door opening toolbox |
Toolbox weight | 32.7 kg (72 lb) |
Toolbox capacity | 32.7 kg (75 lb) |
Toolbox dimensions | -Tray: 27.4-cm (10.8-in.) long x 21.8-cm (8.6-in.) wide x 7.1-cm (2.8–in.) deep -Left-hand side compartment: 46.2-cm (18.2–in.) long X 32.5-cm (12.8–in.) wide X 35.3-cm (13.9–in.) tall -Right-hand side compartment: 62.7-cm (24.7–in.) long X 32.5-cm (12.8–in.) wide X 35.3-cm (13.9-in.) tall -125-L (33-gal.) total volume |
The toolbox can be installed in minutes by simply removing the cargo box sides and tailgate, and bolting the toolbox onto the cargo box.
The toolbox requires the tailgate with brake and tail lights kit (BM26161) and optional label kit:
- BM26220 – green and yellow
- BM26218 –olive and black
- BM26219 – Camo
This toolbox is compatible with the following Gator™ Utility Vehicle models:
- TX
- TX Turf
- TE
- TH
- XUV625i
- XUV825i/E/M
- XUV825i/E/M S4
- XUV855D/E/M
- XUV855D/E/M S4
- XUV835E/M/R
- XUV865E/M/R
- Model year 2018 and newer HPX615 and HPX815
Key features
- Easily installs under the hood in models that do not have heating, ventilation, and air conditioning (HVAC) or the heater kit
- Storage tub has a volume of 21 L (5.5 gal.)
- Rough dimensions: 88.1 cm x 20.3 cm x 38.2-cm deep (34.7 in. x 8 in. x 15-in. deep)
- Removable drain plug
- Removable tool tray
- Dimensions: 45.5 cm x 19.3 cm x 4.6-cm deep (18 in. x 7.6 in. x 2-in. deep)
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Only compatible on these vehicles that do not have HVAC or heater kit installed
Suspension
Key features
- Higher spring rate and higher preload force versus standard springs prevent the vehicle from sagging with a heavy payload, such as a blade and cab
- Recommended when installing a cab or front blade
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- NOTE: M-spec cab (factory installed) and R-spec vehicles already come from the factory with the heavy-duty front and rear shocks.
Key features
- Higher spring rate and higher preload force versus standard springs prevent the vehicle from sagging with a heavy payload, such as with a cab, sprayer, or spreader
- Recommended when installing a cab, sprayer, or spreader, or when consistently hauling heavy loads in the cargo box
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- NOTE: M-spec cab (factory installed) and R-spec vehicles already come from the factory with the heavy-duty front and rear shocks.
Turn Signals
Key features
- Kit includes:
- Front/rear turn signals
- Hazards
- Backlit switches
NOTE: Not intended for use on public roadways.
Compatibility
- Compatible with all model year 2011 to current Gator™ XUV825 and XUV825 S4 Utility Vehicles
- Also requires turn signal light harness kit
- Compatible with all model year 2011 to current Gator XUV625i, XUV855, and XUV855 S4 Utility Vehicles
- Also requires turn signal light harness kit
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Electrical harness requirements
XUV835/865 | Attachment harness required (see below) |
M (open station) | 2 |
M (cab, factory installed) | 2 |
R | --- |
1 | E-spec attachment harness |
2 | Front attachment harness |
3 | Roof attachments harness |
4 | Front cab harness |
5 | Rear cab harness |
6 | Dash port harness |
Winch
Key features
- Impressive pulling capacity of 2041.2 kg (4500 lb)
- Equipped with a water-resistant contactor that supplies the amperage required for higher pulling capacities
- Includes a 3-m (10-ft), water-resistant, plug-in remote for safe distance operation that plugs directly into the glove box
- 15 m (50 ft) of 5.6-mm (7/32-in.) synthetic rope with hawse fairlead. Synthetic rope does not develop sharp burrs like steel rope and does not store as much potential energy when under load.
- Ergonomic clutch handle
- Limited lifetime, 3-year electrical (North America) warranty offered through WARN
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- M-spec and R-spec vehicles come from the factory winch ready, and no additional attachment harnesses are required.
- Requires winch mounting kit to mount the winch either on the chassis or on the front/rear receivers
Electrical harness requirements
XUV835/865 | Attachment harness required (see below) |
E | 1 |
1 | E-spec attachment harness |
2 | Front attachment harness |
3 | Roof attachments harness |
4 | Front cab harness |
5 | Rear cab harness |
6 | Dash port harness |
WARN is a trademark of WARN Industries, Inc.
Double the pulling power, change the pulling direction, and keep the winch in proper working order.
The accessories kit is essential gear for operators getting the most out of their winch:
- Effectively anchors to trees/boulders
- Change the pulling direction
- Double the pulling capacity
The accessories kit includes:
- Flexible tree strap
- Snatch block
- Shackle
Each kit comes in a black Cordura® heavyweight-nylon soft case.
Cordura is a trademark of INVISTA.
Key features
- Wirelessly control winch from up to 15 m (50 ft) away
- Weatherproof transmitter has two large buttons, making it easy to operate even while wearing gloves
- Colored light-emitting diode (LED) lights provide clear operator feedback
- Kit includes wireless transmitter, receiver, holster, wiring, and mounting hardware
Compatibility
- Model year 2012 to current XUV550, XUV550 S4, XUV560, XUV560 S4, XUV590, XUV590 S4, and RSX Utility Vehicles
- Model year 2011 to current XUV625i, XUV825i, XUV825i S4, XUV855D, and XUV855D S4 Utility Vehicles
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Winch Mounting Kit
Key features
- Kit includes everything needed to mount the winch to the chassis
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Requires WARN ProVantage 2041.2-kg (4500-lb) winch (sold separately)
WARN is a trademark of WARN Industries, Inc.
Key features
- Ability to mount the winch on the front or rear receiver
- Kit includes everything needed to mount the winch to the receivers
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
- Requires WARN ProVantage 2041.2-kg (4500-lb) winch (sold separately)
WARN is a trademark of WARN Industries, Inc.
Windshield
Key features
- Easily installs in minutes
- Made from two-sided, abrasion-resistant polycarbonate
- Seals against the occupant protective structure (OPS)
- A rear-panel option is recommended when a full windshield is installed to help keep dust out of the operator station
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Designed to deflect wind, dirt, and debris over the occupants
- Easily installs in minutes
- Made from two-sided, abrasion-resistant polycarbonate
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Tempered glass
- Heat-absorbing tinted glass absorbs solar radiation coming in through the window, reducing solar heat in the operator station
- Design allows for partial venting or a fully-open position
- One-handed operation opens the windshield with the aid of two gas struts
- Windshield-wiper ready (wiper sold separately)
- A rear panel option is recommended when a full windshield is installed to help keep dust out of the operator station
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Key features
- Wash away dirt and debris with a quick flip of a switch
- Washer bottle conveniently located behind access panel
- Washer fluid comes out of nozzle on wiper arm (windshield wiper kit required)
- Kit includes washer bottle, hose connections, and three-position switch
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Electrical harness requirements
XUV835/865 | Attachment harness required (see below) |
E | 1, 3, 4 |
M (open station) | 3, 4 |
M (cab, factory installed) | --- |
R | --- |
1 | E-spec attachment harness |
2 | Front attachment harness |
3 | Roof attachments harness |
4 | Front cab harness |
5 | Rear cab harness |
6 | Dash port harness |
Key features
- Clears water and debris off of the windshield for greater visibility
- Single-speed wiper
- Windshield washer ready (sold separately)
- Backlit switch installs into the dash
Compatibility
- Model year 2018 to current XUV835 and XUV865 Utility Vehicles
Electrical harness requirements
XUV835/865 | Attachment harness required (see below) |
E | 1, 3, 4 |
M (open station) | 3, 4 |
1 | E-spec attachment harness |
2 | Front attachment harness |
3 | Roof attachments harness |
4 | Front cab harness |
5 | Rear cab harness |
6 | Dash port harness |
