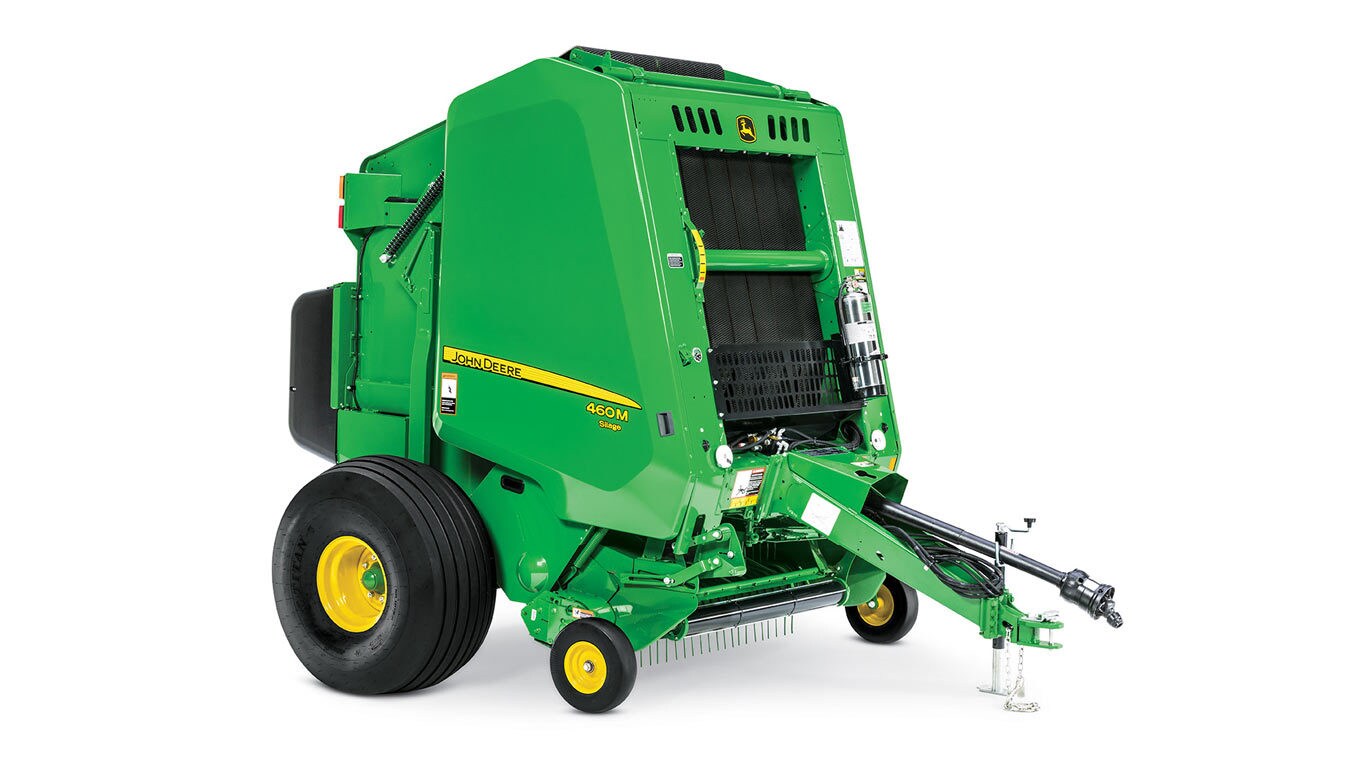

460M
Round Baler
- Available in the following models:
- Standard (dry hay)
- Silage
- BaleTrak™ Pro monitor-controller
- Exclusive DiamondTough™ triple weave belts
- Exclusive COVER-EDGE™ surface wrap option
View Product Brochure
Features
Specifications
Compare the specifications of up to 4 models
| Key Specs | 460m Current Model |
|---|---|
| Belts-other - width | 17.8 cm 7 in. |
| Density control | Hydraulic |
| Bale size indication | Electronic display on monitor |
| Regular pickup - Bars | |
| Regular pickup - Number of teeth | |
| Regular pickup - Tooth spacing | |
| MegaWide Plus pickup - Number of regular teeth | 96 |
| MegaWide Plus pickup - Number of mega teeth | 16 |
| High-capacity pickup - Number of middle teeth | 120 |
| High-capacity pickup - Number of mega teeth | Eight |
| Bale | |
| Size | Diameter 81 - 183 cm 32 - 72 in. Width 117 cm 46 in. 1.2 x 1.8 m 4 x 6 ft |
| Weight | Full-size bale in dry crop 748 kg 1,650 lb Max. allowable for silage bale 998 kg 2,200 lb |
| Baler | |
| Base weight | |
| Weight | Shipping dry - 2,800 kg 6,172 lb Shipping silage - 2,979 kg 6,568 lb Shipping precutter - 3,930 kg 8,665 lb |
| Length | Gate closed 371 cm 146 in. Gate open 475 cm 187 in. |
| Height | Gate closed 279 cm 110 in. Gate open 368 cm 145 in. |
| Width | With standard tires 226 cm 89 in. With opt. tires (Hi-Flotation) 244 cm 96 in. |
| Bale forming | |
| Forming chamber | |
| Belts-other | Number Six Width 17.8 cm 7 in. Texture Diamond Tread friction surface belts DiamondTough, triple-weave, single-ply belts |
| Enclosed percent of bale surface | |
| Belt splices | |
| Density control | Hydraulic |
| Bale size indication | Electronic display on monitor |
| Bale Shape | |
| Regular pickup | |
| Type | |
| Width | |
| Drive | |
| Bars | |
| Number of teeth | |
| Tooth spacing | |
| Lift control | |
| Gauge wheels | |
| Stripper diameter | |
| MegaWide Plus pickup | |
| Type | |
| Width | Inside 155 cm 61 in. Flare 180 cm 71 in. |
| Drive | |
| Bars | |
| Number of regular teeth | 96 |
| Number of mega teeth | 16 |
| Tooth spacing | |
| Lift control | |
| Gauge wheels | Semi-pneumatic |
| Stripper diameter | |
| High-capacity pickup | |
| Type | MegaWide High Capacity and Cutting (HC |
| Width | Inside 196 cm 77 in. Flare 221 cm 87 in. |
| Drive | |
| Bars | |
| Number of middle teeth | 120 |
| Number of mega teeth | Eight |
| Tooth spacing | |
| Lift control | |
| Gauge wheels | Semi-pneumatic |
| Stripper diameter | 25.4 cm 10 in. |
| Wrapping system | |
| Control | Automatic to preset to bale size |
| Type | Standard Electric |
| Twine arms | Two |
| Twine ball capacity | Eight |
| Monitor | |
| Monitor console for tractor | |
| Gate closed | Symbol on monitor |
| Bale forming | BaleTrak Pro |
| Bale size | Mechanical and digital |
| Near full bale | Audible, adjustable alert |
| Full bale | Audible, adjustable alert |
| Twine arm position Indicator | Mechanical |
| Auto wrap | Activates when bale reaches preset size |
| Oversize bale | Yes, audible and mechanical alerts |
| Surface wrap | |
| Available | |
| Tire size | |
| Standard | Dry and Silage - high-flotation 14 L - 16.4, 8 PR |
| Optional | With MegaWide Plus or MegaWide HC |
| Driveline | |
| Drive protection | Slip clutch |
| PTO speed | 540 rpm |
| Type | Constant-velocity (CV) |
| PTO lockback collar on tractor hookup | Yes |
| PTO 60-degree free rotation | Yes |
| Tractor Requirements | |
| Minimum PTO | Dry Hay and Silage - 48 kW 65 hp MegaWide HC kW 85 hp |
| Hydraulic SCV valves | One tractor selective control valve (SCV) is required when baler is equipped with electric twine wrap. Two tractor SCVs are required when baler is equipped with hydraulic twine wrap. Three tractor SCVs are required when baler is equipped with hydraulic twine wrap and a hydraulic pickup lift. |
| Silage baler features | |
| Starter roll scraper | |
| Powered scraping auger | |
| Spirals on gate roll | |
| Pre-cutter/slicer |
