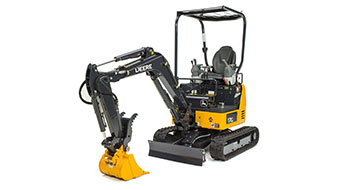

17G EXCAVATOR
Excavator
- Net Power: 10.8 kW (14.5 hp)
- Max. Digging Depth: 2.19 m (7 ft. 2 in.)
- Operating Weight: 1720 kg (3,790 lb.)
View Product Brochure
Features
Variable-width undercarriage, reduced-tail-swing design, and independent swing boom allow the 17G to navigate narrow openings and work in tight quarters with ease.
Rubber tracks’ unique steel cores resist cracking. Large-diameter drive sprockets and track idlers further increase undercarriage durability.
Go from backhoe- to excavator-style controls with just a twist of your wrist. Control pattern selector valve is conveniently located in a compartment beneath the seat and includes a sight glass that displays the selected pattern.
High-torque fuel-efficient diesels meet EPA Final Tier 4/EU Stage IV emission standards without after treatment devices — reducing maintenance and expense.
Heavy-duty side-by-side coolers enhance efficiency in high-ambient or -altitude working conditions.
Nearly unobstructed visibility provides a commanding view of the surrounding jobsite.
No tools are needed to access daily or periodic checkpoints. Hinged steel doors swing open wide, for quick and easy service.
Specifications
Compare the specifications of up to 4 models
| DRIVELINE | 17g-excavator Current Model |
|---|---|
| Emission Rating | Tier 4 |
| Engine Manufacturer | Yanmar |
| Number Of Cylinders (Per Engine) | 3 |
| Displacement, ltr (Inches�) | 0.99 (61) |
| Rated speed, rpm | 2400 |
| Engine Output - Net, kW (hp) | 10.8 (14.5) |
| Track Shoe Width, mm (inches) | 230 (9) |
| DIMENSIONS | |
| Transport Length Mono Boom, mm (ft/in) | 3500 (11 ft 6 in) |
| Overall Width, mm (ft/in) | 980 (3 ft 3 in) |
| Track Length On Ground, mm (ft/in) | 1210 (4 ft ) |
| Undercarriage Overall Length, mm (ft/in) | 1570 (5 ft 2 in) |
| Tailswing Radius, mm (ft/in) | 680 (2 ft 3 in) |
| Ground Clearance, mm (inches) | 165 (6) |
| Dozer Blade Height, mm (inches) | 260 (10.2) |
| Digging Reach - Mono Boom, mm (ft/in) | 3810 (12 ft 6 in) |
| Dig Height - Mono Boom, mm (ft/in) | 3540 (11 ft 7 in) |
| Dump Height - Mono Boom, mm (ft/in) | 2510 (8 ft 3 in) |
| Dig Depth - Mono Boom, mm (ft/in) | 2190 (7 ft 2 in) |
| Standard Dipper, mm (ft/in) | 930 (3 ft 1 in) |
| CAPACITIES | |
| Fuel Tank, ltr (gallons (US)) | 20.06 (5.3) |
| Hydraulic Tank, ltr (gallons (US)) | 14.01 (3.7) |
| Number Of Batteries | 1 |
| Voltage, V | 12 |
| PERFORMANCE | |
| Ground Bearing Pressure, kPa (PSI) | 26.6 (3.9) |
| Slew Speed, rpm | 9.4 |
| Travel Speed - High, kph (mph) | 4.2 (2.6) |
| Dipper Tearout, kN (lbf) | 8.6 (1933) |
| Bucket Breakout, kN (lbf) | 16 (3597) |
| Main Pumps - Maximum Flow, lt/min (gallons (US) / min) | 38.4 (10.2) |
| WEIGHTS | |
| Operating Weight, kg (lbs) | 1720 (3790) |
